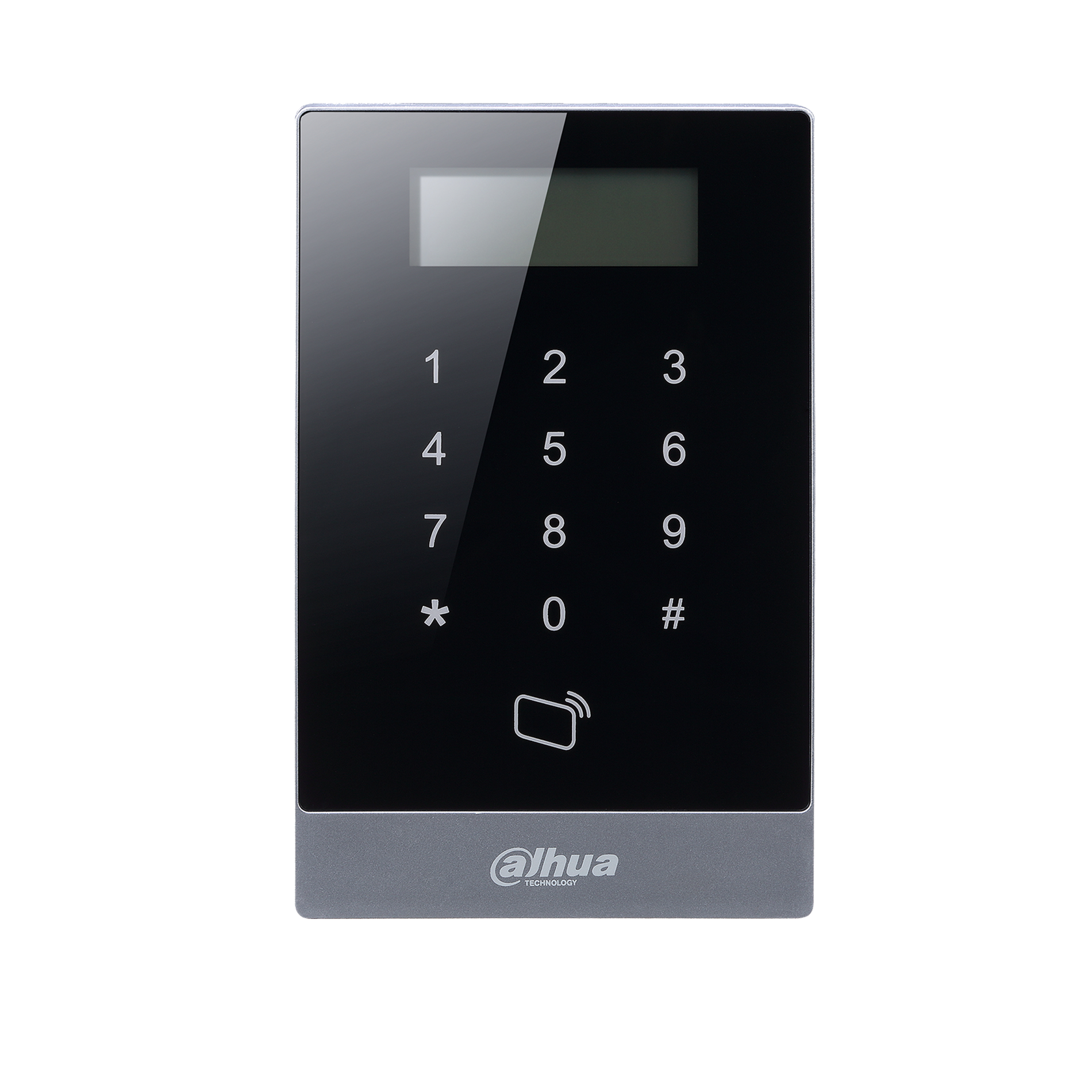

Dahua ASI1201A-D Standalone RFID Access Controller
Standalone RFID access controller with a touch keypad and LCD. Supports card, PIN and combined unlock, with up to 30,000 cards and 150,000 records (-D = EM ID cards).
Product Specifications
| System | |
|---|---|
| Main Processor | 32 Bit |
| Memory | 16M |
| Input/Output Ports | |
| Input | Door sensor x 1, Exit button x 1, Alarm input x 1 |
| Output | Relay :Door lock × 1 TTL: Bell× 1, Alarm×2 |
| Reader | Reader x 1 |
| Card Read | |
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range | 3-8cm (max.) |
| Capacity | |
| Cardholders | 30,000 |
| Events | 150,000 |
| Function | |
| User Management | General, VIP, Guest, Patrol, Block list, Duress |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Period Setting | Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods |
| Interface | |
| To PC | RJ45(10/100M) |
| To Reader | Wiegand/ RS485 |
| Genreal | |
| RTC | Yes |
| Voice Prompt | No |
| Beep Tone | Buzzer |
| Keyboard | Sensitive touch keypad with blue backlight |
| Power Supply | 9-15DC/200mA |
| Working Environment | -5°C~+55°C |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 97mm*16mm *150mm |
| Weight | 0.3Kg |
Product Datasheet
Source: official manufacturer datasheet.
