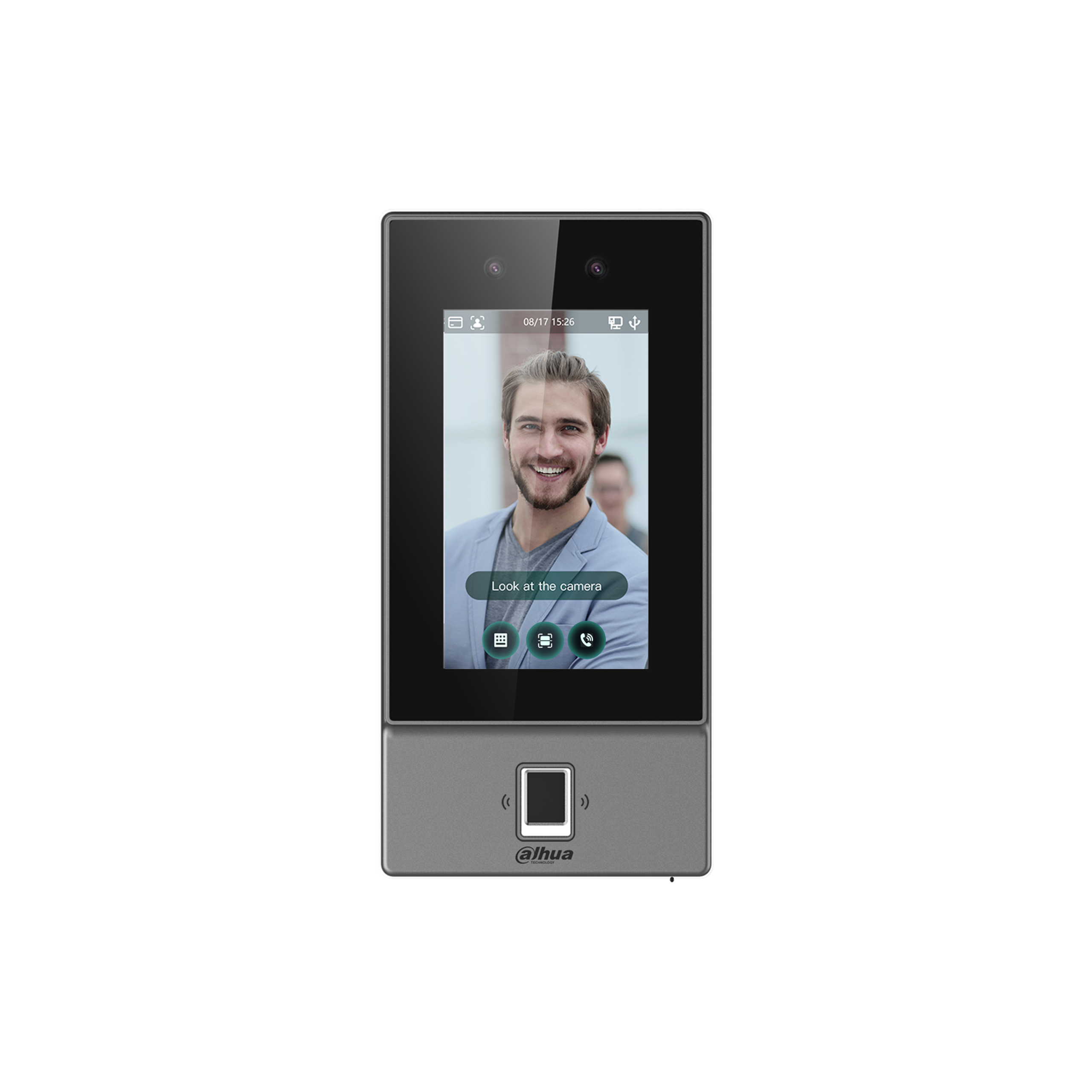

Dahua ASI6214S-PW Face Recognition Access Control Terminal
Face recognition access terminal with a 4.3-inch touchscreen and 2MP dual-lens camera. Large user capacity (6,000 faces and fingerprints) plus card and password unlock.
Product Specifications
| System | |
|---|---|
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| OSDP Protocol | Yes |
| Interoperability | CGI; ONVIF |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 272 (H) × 480 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Casing Material | PC+GF |
| Function | |
| Unlock Mode | Card, remote, password, QR code, Fingerprint, face and combination unlock |
| Card Type | IC card; Desfire card (EV3,Compatible with Dahua card by default) |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Advertisement Playing | Plays advertisements in video and image format |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Peripheral Card Reader | 1 × RS-485 card reader 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| RFID | |
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Network | |
| Max. Transmission Power | ≤20dBm@2400-2483.5 MHz |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Face Recognition Height Range | 1.1 m–2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| Fingerprint Verification Mode | 1:N |
| User | |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
| Capacity | |
| User Capacity | 6,000 |
| Face Image Capacity | 6,000 |
| Fingerprint Capacity | 6,000 |
| Card Capacity | 10,000 |
| Password Capacity | 6,000 |
| Record Capacity | 300,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Duress Fingerprint | Yes |
| Illegal Card Exceeding Threshold | Yes |
| General | |
| Power Adapter | Included |
| Power Supply | Standard PoE 12 VDC, 1.5 A |
| Protection | IP65 |
| Power Consumption | ≤12 W |
| Product Dimensions | 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H) |
| Packaging Dimensions | 268 mm × 136 mm × 78 mm (10.55" × 5.35" × 3.07") (L × W × H, in an inner carton) 590 mm × 432 mm × 302 mm (23.23" × 17.01" × 11.89") (L × W × H, protection box) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Outdoor; Indoor |
| Gross Weight | 0.70 kg (1.54 lb) |
| Accessory | Wall mount bracket (included) |
| Installation | Turnstile mount; 86 case mount; Wall mount; surface mount |
Product Datasheet
Source: official manufacturer datasheet.
