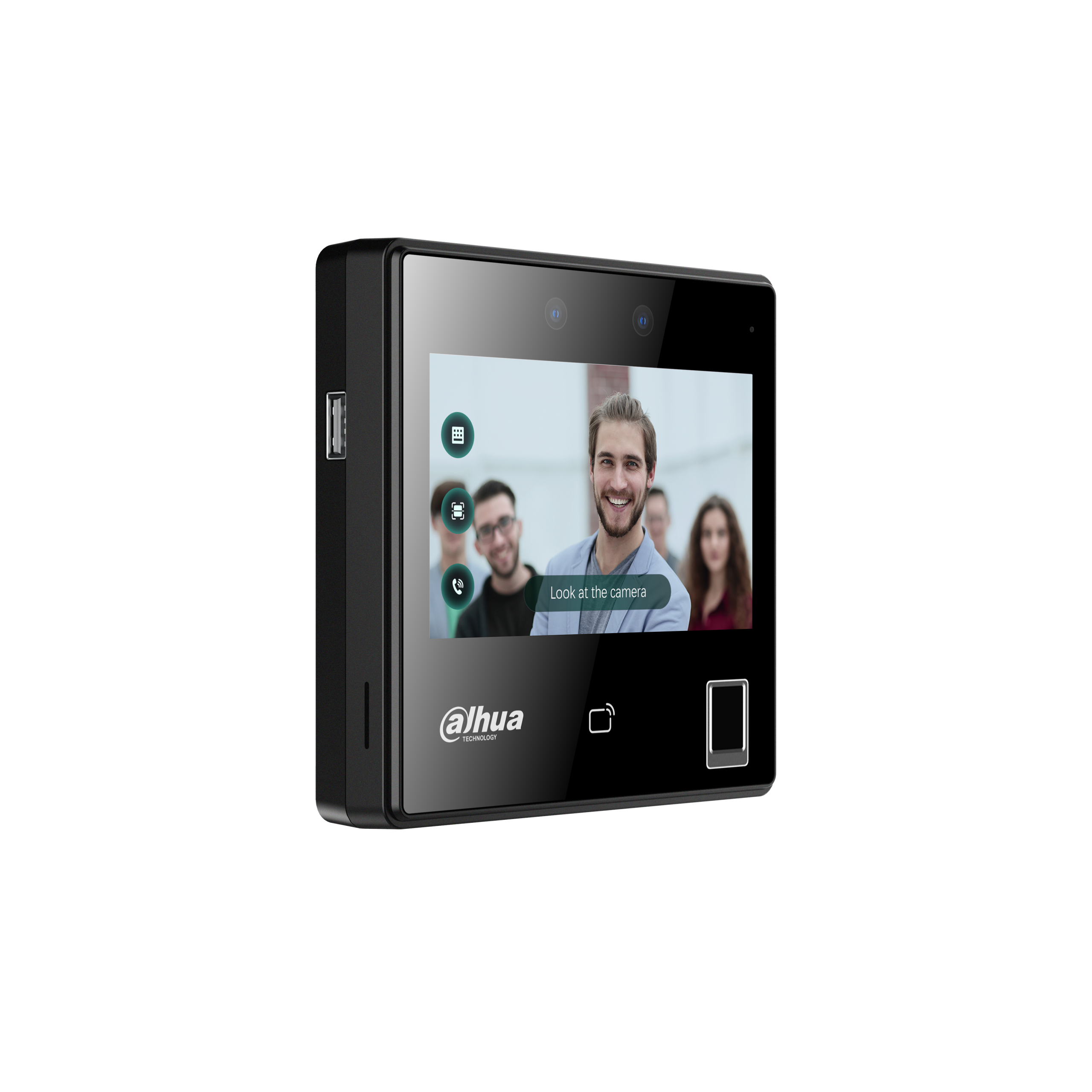

Dahua ASI3214A-W Wi-Fi Face Recognition Access Controller
Wi-Fi face recognition access terminal with a 4.3-inch touchscreen and dual-lens camera. Handles faces, fingerprints, cards and PINs, with liveness detection.
Product Specifications
| System | |
|---|---|
| Main Processor | Embedded Processor |
| Network Protocol | IPv4; RTSP; RTP; TCP; UDP; SIP; P2P |
| OSDP Protocol | Yes |
| Interoperability | ONVIF; CGI |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 480 (H) × 272 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Casing | PC + ABS |
| Function | |
| Unlock Mode | Password, fingerprint, card, remote, face and combination unlock |
| Card Type | IC card; Desfire card (EV3,Compatible with Dahua card by default) |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Peripheral Card Reader | 1 × RS–485 card reader; 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| RFID | |
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Network | |
| Max. Transmission Power | ≤20dBm@2400-2483.5 MHz |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Face Recognition Height Range | 1.1 m– 2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| Fingerprint Verification Mode | 1:N |
| Fingerprint Comparison Time | 1.5 s |
| Fingerprint Recognition Time | 0.5 s |
| Read Speed (QR Code ) | 500 ms |
| Code Type | Paper; Electronic |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user |
| User Capacity | 3,000 |
| Face Image Capacity | 3,000 |
| Card Capacity | 5,000 |
| Fingerprint Capacity | 5,000 |
| Password Capacity | 3,000 |
| Record Capacity | 300,000 |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 × USB 2.0 |
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Exit Button | 1 |
| Lock Control | 1 |
| Door Status Detection | 1 |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Adapter | Standard |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤18 W |
| Product Dimensions | 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × D) |
| Packaging Dimensions | 190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box) |
| Operating Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Environment | Indoor |
| Net Weight | 250 g (0.55 lb) |
| Gross Weight | 400 g (0.88 lb) |
| Accessory | Wall mount bracket (included) |
| Installation | Wall mount; 86 case mount; desk mount |
Product Datasheet
Source: official manufacturer datasheet.
