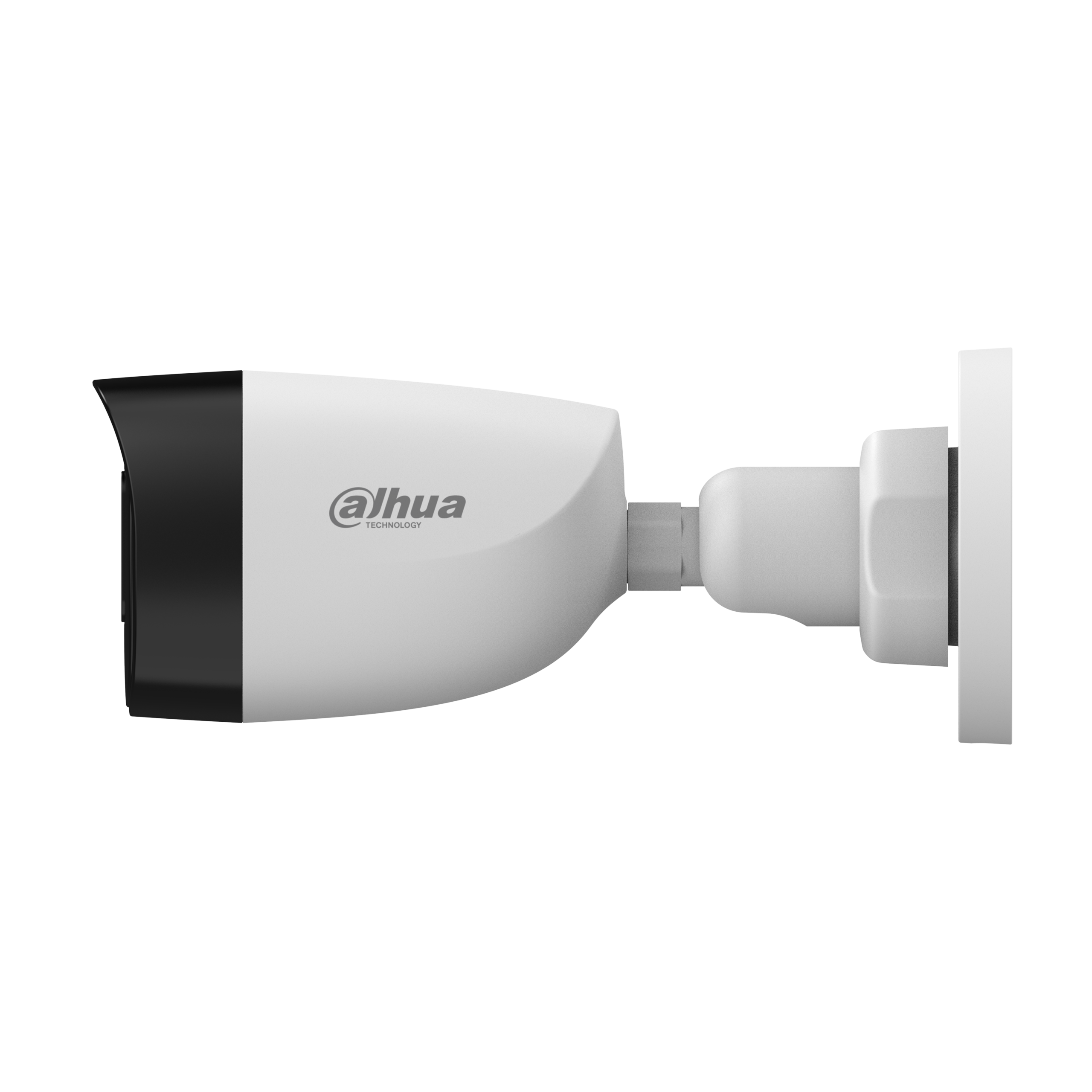

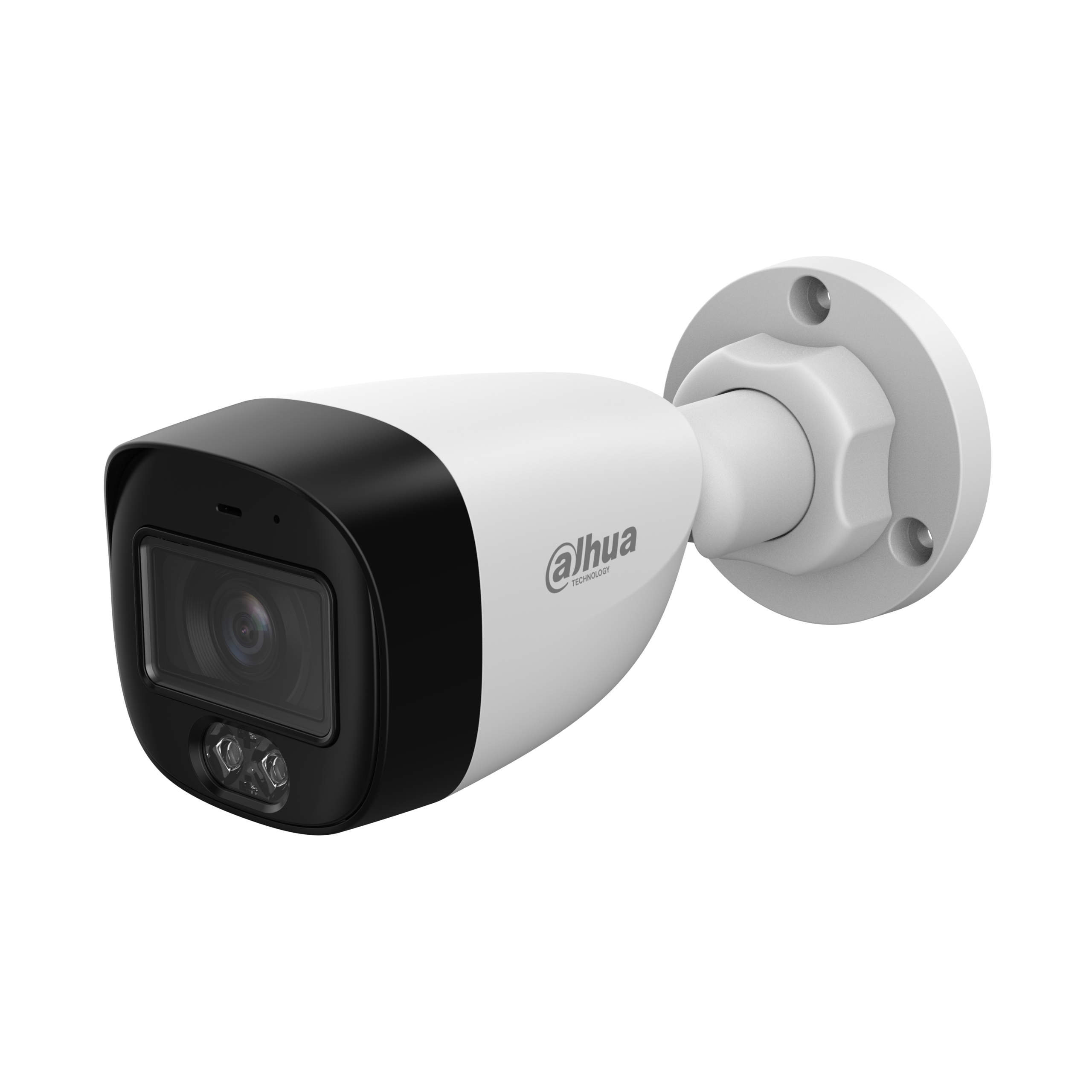

Dahua HAC-HFW1509C(-A)-LED 5MP Full-color HDCVI Bullet Camera
5MP full-colour HDCVI bullet camera with 30 m illumination and a built-in microphone. Gives colour images around the clock over coax.
Product Specifications
| Camera | |
|---|---|
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s |
| Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88°; V: 46°; D: 104° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 2 m (6.56 ft) 3.6 mm: 2.3 m (7.55 ft) |
| DORI Distance | Lens |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps; 4M@25 fps NTSC: 5M 16:9@20 fps; 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Color |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart Light |
| Defog | Electronic defog |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Pick-up Distance | 8 m (26.25 ft) |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
| Audio | |
| Built-in Mic | Yes |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Alarm Output | 1 channel |
| Power | |
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
| Power Consumption | Max 5.5 W (12 VDC, LED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal front cover + plastic |
| Product Dimensions | 161.6 mm × 70.0 mm × 69.7 mm (6.36" × 2.76" × 2.74") (L × W × H) |
| Net Weight | 0.21 kg (0.46 lb) |
| Gross Weight | 0.31 kg (0.68 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
Product Datasheet
Source: official manufacturer datasheet.
