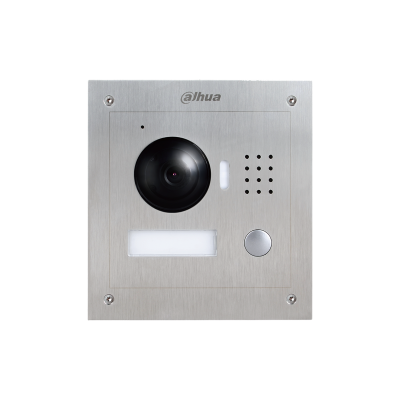

Dahua VTO2000A-2-S1 2-Wire IP Villa Outdoor Station
2-wire IP villa outdoor station with a 1.3MP camera, stainless steel IP54/IK07 panel, night vision and surface or flush mounting.
Product Specifications
| System | |
|---|---|
| Main Processor | Embedded micro processor |
| Operating System | Embedded Linux OS |
| Video | |
| Video Compression | H.264 |
| Image Sensor | 1/3" 1.3MP CMOS |
| Lens | 2.8 mm |
| Angle of View | H: 87°, V: 63°, D: 117° |
| Day/Night | Color image |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional microphone |
| Audio Output | Built-in speaker |
| Bidirectional Talk | Dual-way bidirectional talk |
| Interface | |
| Operation Mode | Single mechanical button |
| Door Control | 2 (1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2 (1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Ingress Protection | IP54, IK07 |
| Tamper Switch | 1 |
| Installation | Surface & flush |
| Material | Stainless steel |
| Power | DC 24V / supplied directly by VTNC3000A |
| Power Consumption | Work 10 W |
| Working Environment | -30°C to +60°C |
| Relative Humidity | 10% RH-90% RH |
| Dimensions | 129.9 mm × 32.2 mm × 140 mm |
| Weight | 0.8 kg |
Product Datasheet
Source: official manufacturer datasheet.
