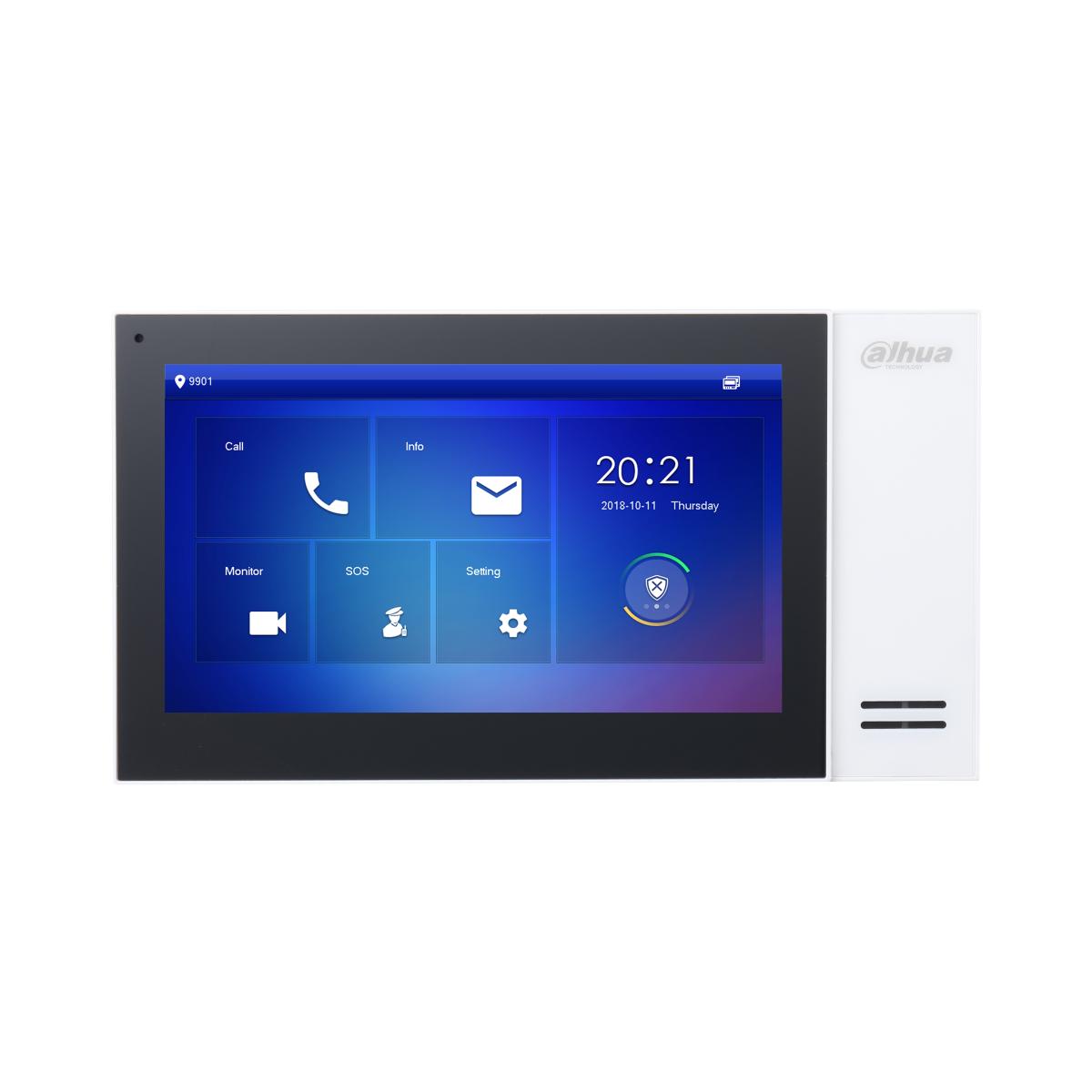

Dahua DHI-VTH2421FB-P 7-Inch IP Indoor Monitor
Black 7-inch capacitive touch-screen IP indoor monitor with two-way audio, PoE power, IP camera viewing and 6 alarm inputs.
Product Specifications
| System | |
|---|---|
| Main Processor | High performance embedded processor |
| Operating System | Embedded Linux OS |
| Display | |
| Screen Type | Capacitive touch screen |
| Display | 7-inch TFT |
| Resolution | 1024 × 600 |
| Audio and Video | |
| Video Compression | H.264 |
| Audio Compression | G.711A/G.711U/PCM |
| Audio Input | 1 channel omnidirectional microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| Audio Mode | Two-way talk |
| Audio Enhancement | Echo cancellation/DNR |
| Communication Mode | Full digital |
| Function | |
| Leave Videos or Text Messages | Support |
| DND Mode | Support to set DND period |
| Sub-station Quantity | 9 |
| SOS Alarm | Support |
| Interface | |
| Alarm Input | 6 channels (switch quantity) |
| Alarm Output | 1 channel |
| Network | 1 RJ-45 |
| Storage | Micro SD, max. 32 GB (8 GB standard) |
| General | |
| Power Supply | Standard PoE / DC 12V 1A |
| Power Consumption | Standby 4 W, work 6 W |
| Casing | PC + ABS |
| Installation | Wall mount |
| Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10% RH-95% RH |
| Gross Weight | 0.35 kg (0.77 lb) |
Product Datasheet
Source: official manufacturer datasheet.
