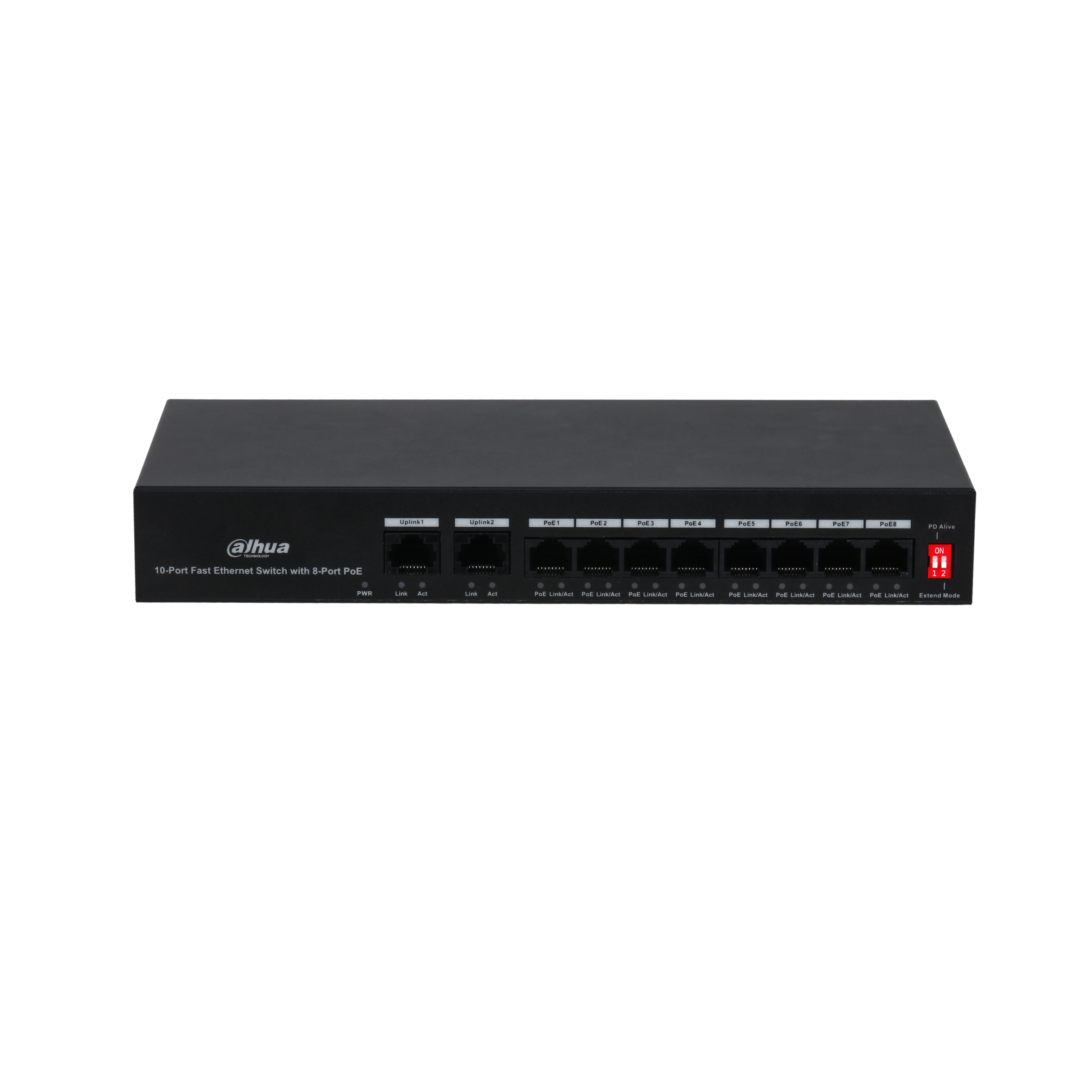

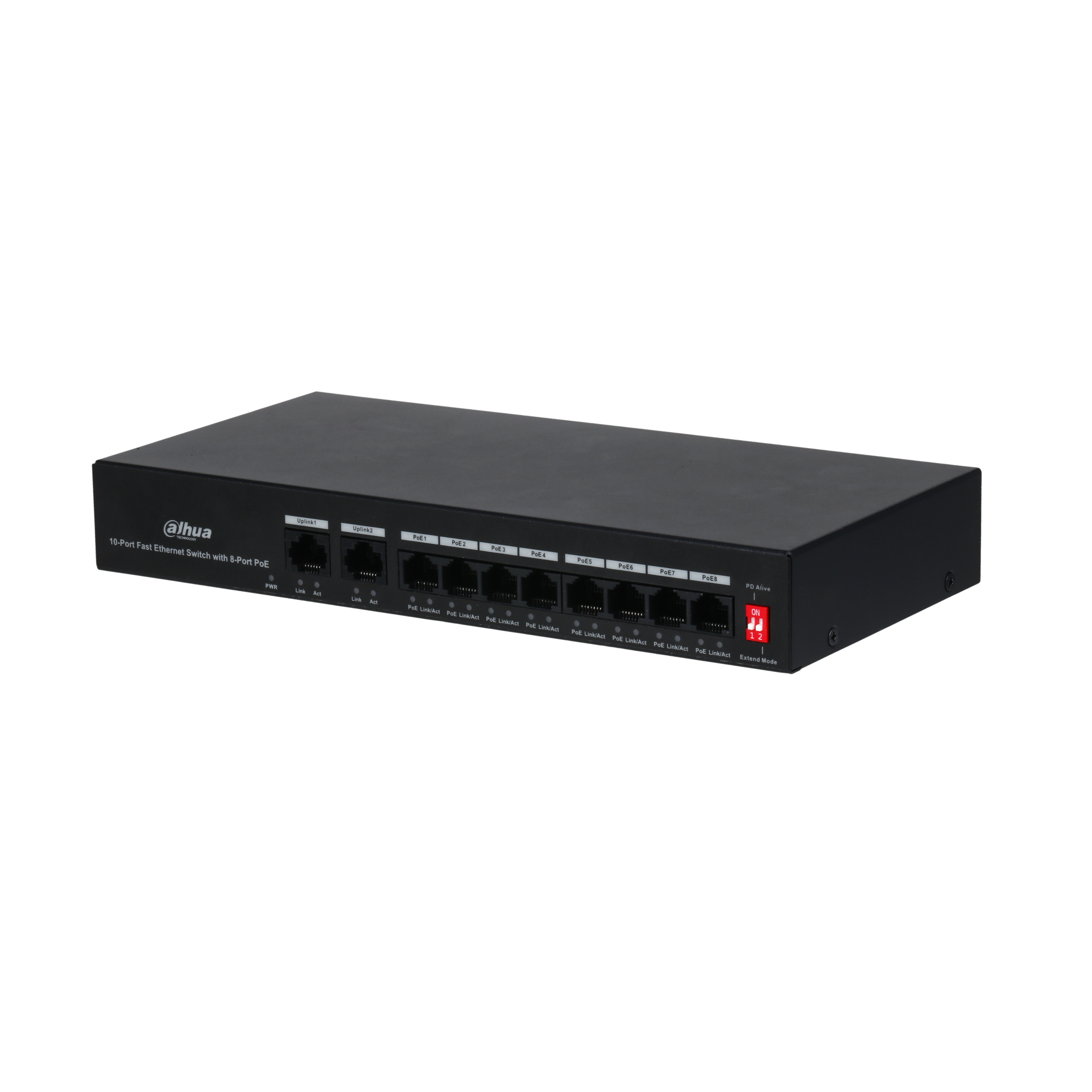

Dahua PFS3010-8ET-65 10-Port Fast Ethernet PoE Switch
10-port Fast Ethernet switch with eight PoE ports and two uplinks, 802.3af/at compatible. Supports long-distance PoE up to 250 m.
Product Specifications
| Hardware | |
|---|---|
| Data Transmission Port | 8 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX |
| Power Supply | AC100–AC240V |
| Operating Temperature | -10°C to +55°C (-14°F–131°F) |
| Operating Humidity | 10%–90% |
| Power Consumption | Idling: 1.0W Full load: 65W |
| PoE | |
| PoE Budget | Port1-8 ≤30W, whole PoE budget ≤65W |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Pin Assignment | PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) |
| Performance | |
| Switching Capacity | 2.0 Gbps |
| Packet Forwarding Rate | 1.49 Mpps |
| MAC Table Size | 2 K |
| Jumbo Frame | 2048 byte |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3X |
| ESD | Air discharge: 8kV Contact discharge: 6kV |
| Thunderproof | Common mode: 6kV Differential mode: 4kV |
| Net Weight | 0.76 kg (1.68 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Product Dimensions (W × L × H) |
242.5 mm × 122.9 mm × 35.0 mm (9.55" × 4.84" × 1.38") |
| Packaging Dimensions (W × L × H) |
Packing box: 303 mm × 262 mm × 72 mm (11.92" ×10.31" × 2.83") Protective box: 549 mm × 325 mm × 397 mm (21.61" ×12.80" × 15.63") |
| Package | 10 devices in one package |
| Certifications | CE: EN60950; FCC |
Product Datasheet
Source: official manufacturer datasheet.
