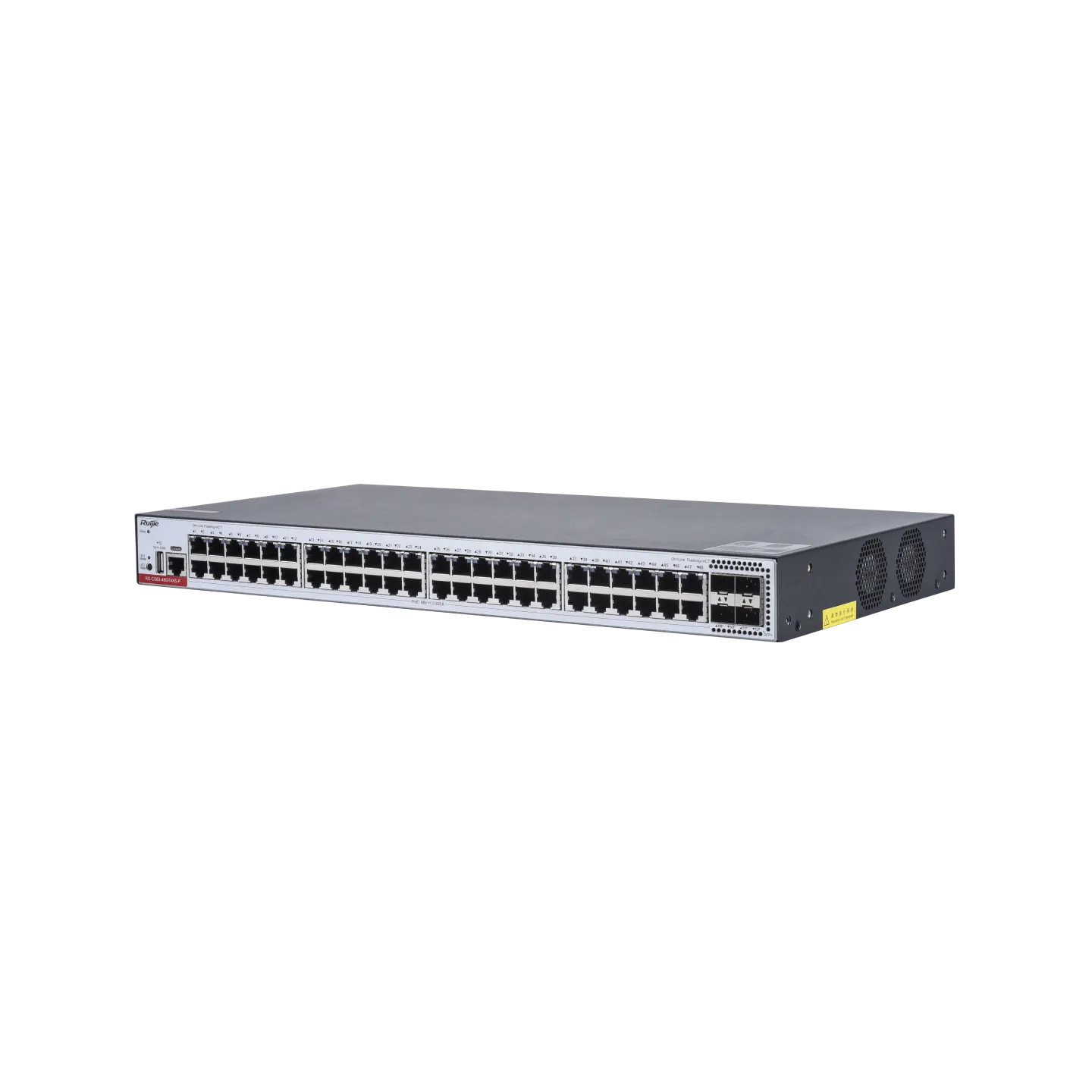

RG-CS83-48GT4XS-P
$1,450.00
Highlight Features
- Provides multiple network management methods, achieving simple and easy network maintenance.
- Provides open and programmable RGOS modular operating system. Basic functions are incorporated into the main version, and c ustom functions are released in app mode, ensuring stability of the basic functions.
- Rectifies faults related to processes online in seconds, without interrupting network operation.
- Supports Python that allows applications across platforms.
- Upgrades and extends functions online to ensure nonstop services.
121 in stock
Product Specifications
| Port Specifications | |
|---|---|
| Fixed service ports | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested) |
| System Specifications | |
| Packet forwarding rate | 132 Mpps |
| Switching capacity | 176 Gbps |
| CPU | Dual-core CPU, each core with the clock speed of 1.0 GHz |
| BootROM | 16 MB (storing boot software for 1+1 boot redundancy) |
| Flash memory | 512 MB (storing boot software for 1+1 boot redundancy) |
| Memory | 1 GB |
| Switch buffer | 1.5 MB |
| MAC address table size | 16,000 |
| ARP table size | 4,000 |
| Number of IPv4 unicast routes | 6,000 |
| Number of IPv4 multicast routes | 1,000 |
| Number of IPv6 unicast routes | 2,000 |
| Number of IPv6 multicast routes | 750 |
| Number of ACEs | Ingress: 1,750 Egress: 800 |
| Number of VSU members | 4 |
| Dimensions and Weight | |
| Unit dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Shipping dimensions (W x D x H) | 540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.) |
| Rack height | 1 RU |
| Unit weight | 4.0 kg (8.82 lbs) |
| Shipping weight | 4.90 kg (10.80 lbs) |
| Power supply and Consumption | |
| Power supply | RG-CS83-24GT4XS: 1 x fixed power supply; RG-CS83-48GT4XS: 1 x fixed power supply |
| Power input | RG-CS83-24GT4XS: AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 0.6 A; RG-CS83-48GT4XS: AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 1.5 A |
| Maximum output power | RG-CS83-24GT4XS: Built-in power supply: 25 W; RG-CS83-48GT4XS: Built-in power supply: 40 W |
| Maximum power consumption | RG-CS83-24GT4XS: 25 W; RG-CS83-48GT4XS: 40 W |
| Energy saving | RG-CS83-24GT4XS: Supported; RG-CS83-48GT4XS: Supported |
| Power supply | 1 x fixed power supply |
| Power input | AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
| Maximum output power | Built-in power supply: 460 W |
| Maximum power consumption | 52 W (non-PoE) 460 W (PoE full load) |
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
| PoE output power | Each PoE port provides up to 30 W of power The maximum power is 405 W |
| Energy saving | Supported |
| Environment and Reliability | |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
| Mean time between failure (MTBF) | 200,253 hours (about 22 years) |
| Fan | 1 x fixed fan module |
| Heat dissipation | Front-to-right and left-to-right airflow |
| Acoustic noise | 27℃ (80.6°F): 35 dB |
| Cable hot swapping | Cable hot swapping for all ports |
| Fan monitoring | PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming |
| Temperature monitoring | Supported |
| ESD | ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
| Surge protection | Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV |
| Conformal coating | Conformal coating supported (key components only) |
| Certifications and Regulatory Compliance | |
| Safety regulation | IEC 62368-1 |
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| Communication standard | IEEE 802.3-2005 Ethernet standard IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication |
| RoHS | Supported |
| RG-CS83 Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| Ethernet switching | 802.3az EEE |
| Ethernet switching | IEEE 802.1Q (4K VLANs) |
| Ethernet switching | Voice VLAN |
| Ethernet switching | Super-VLAN and private VLAN |
| Ethernet switching | MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN |
| Ethernet switching | GVRP |
| Ethernet switching | Basic QinQ Selective QinQ |
| Ethernet switching | STP, RSTP, and MSTP |
| Ethernet switching | ERPS (G.8032) |
| Ethernet switching | LLDP/LLDP-MED |
| Ethernet switching | Non blocking |
| IP service | ARP |
| IP service | DHCP client, DHCP relay, and DHCP server |
| IP service | DHCP snooping |
| IP service | DNS |
| IP service | DHCPv6 client, DHCPv6 relay, and DHCPv6 server |
| IP service | DHCPv6 snooping |
| IP service | Neighbor Discovery (ND) and ND snooping |
| IP routing | Static routing |
| IP routing | RIP and RIPng |
| IP routing | OSPFv2 and OSPFv3 |
| IP routing | IPv4 and IPv6 VRF |
| IP routing | IPv4 and IPv6 PBR |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| Multicast | IGMP v1/v2 snooping |
| Multicast | PIM-DM, PIM-SM, and PIM-SSM |
| Multicast | MSDP |
| Multicast | MLD v1/v2 |
| Multicast | MLD snooping v1/v2 |
| Multicast | PIM-SMv6 and PIM-SSM v6 |
| ACL and QoS | Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL and QoS | ACL redirection |
| ACL and QoS | Traffic rate limiting on an interface |
| ACL and QoS | Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
| ACL and QoS | Congestion avoidance: tail drop |
| ACL and QoS | 802.1p/DSCP/ToS traffic classification Eight priority queues per interface |
| ACL and QoS | L2/L3/L4 packet identification and classification |
| Security | Multiple AAA modes |
| Security | RADIUS and TACACS+ |
| Security | Interface-based and MAC address-based 802.1x authentication |
| Security | Web authentication |
| Security | HTTPS |
| Security | SSHv1 and SSHv2 |
| Security | Global IP-MAC binding |
| Security | Port isolation and port security |
| Security | IP source guard |
| Security | SAVI |
| Security | CPP and NFPP |
| Reliability | REUP, RLDP, DLDP |
| Reliability | IPv4 VRRP v2/v3 and IPv6 VRRP |
| Reliability | BFD |
| Reliability | Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) |
| Reliability | Dual-Boot Redundancy |
| Reliability | Fan speed adjustment Fan fault alarm |
| Device virtualization | Virtual Switching Unit (VSU) |
| NMS and maintenance | SPAN, RSPAN |
| NMS and maintenance | sFlow |
| NMS and maintenance | NTP and SNTP |
| NMS and maintenance | FTP and TFTP |
| NMS and maintenance | SNMP v1/v2/v3 |
| NMS and maintenance | RMON (1, 2, 3, 9) |
| NMS and maintenance | NETCONF |
| NMS and maintenance | Flow-based mirroring, and N:1 and 1:N port mirroring |
| NMS and maintenance | CWMP (TR-069) |
| NMS and maintenance | gRPC |
| NMS and maintenance | Cloud and SON |
| PoE | RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at Warm start Interface priority |
