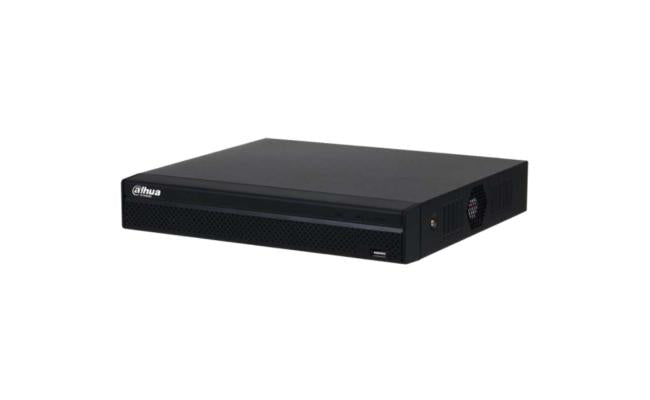

Dahua DHI-NVR1108HS-8P-S3/H 8-Channel 8PoE Network Video Recorder
Compact 1U network video recorder with 8 channels and 8 built-in PoE ports, Smart H.265+ / H.264+ compression, one SATA bay (up to 8TB), HDMI and VGA output.
Product Specifications
| Recorder System | |
|---|---|
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| Recorder Video and Audio | |
| IP Camera Input | 8 channels |
| Recording | |
| Video Compression | Smart H.265+/Smart H.264+/H.265/H.264 |
| Record Rate | Priority of record mode: Manual recording > alarm ; recording > motion detection recording > timed ; recording |
| Recorder Display | |
| Interface | 1 HDMI ; 1 VGA; 2 RCA (input\output) |
| Recorder Network | |
| Ethernet port | x1 10/100 Mbps |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;DNS; P2P |
| Recorder Storage | |
| HDD | 1 SLOT |
| Warranty | |
| Warranty | 1 Year |
| Recorder Video and Audio | |
| Maximum Resolution | Up to 8MP (preview and playback) |
| Decoding Capability | 1-ch@8MP (30 fps) or 4-ch@1080P (30 fps) |
| Recorder Network | |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding |
| PoE | 8 PoE ports |
| PoE Power Budget | Total PoE output power 72W, max 25.5W for a single port |
| Recorder Storage | |
| Storage Capacity | 1 SATA port, up to 8TB for a single HDD (max capacity varies with the environment) |
| Auxiliary Interface | |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| Power | |
| Power Supply | DC 48V/53V, 2A/1.8A |
| Power Consumption | NVR total output ≤ 10W (without HDD) |
| Construction | |
| Dimensions | 260 mm × 225 mm × 47.6 mm (W × L × H) |
| Net Weight | 0.84 kg |
| Gross Weight | 1.98 kg |
| Environment | |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%-93% (non-condensing) |
Product Datasheet
The datasheet for this product is available on request. Please contact our team and we will send it to you.
