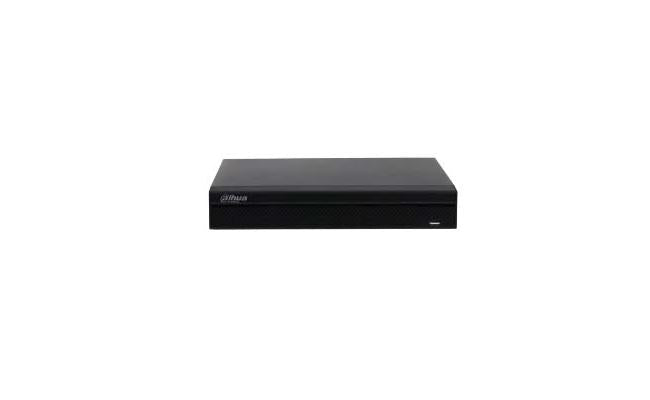

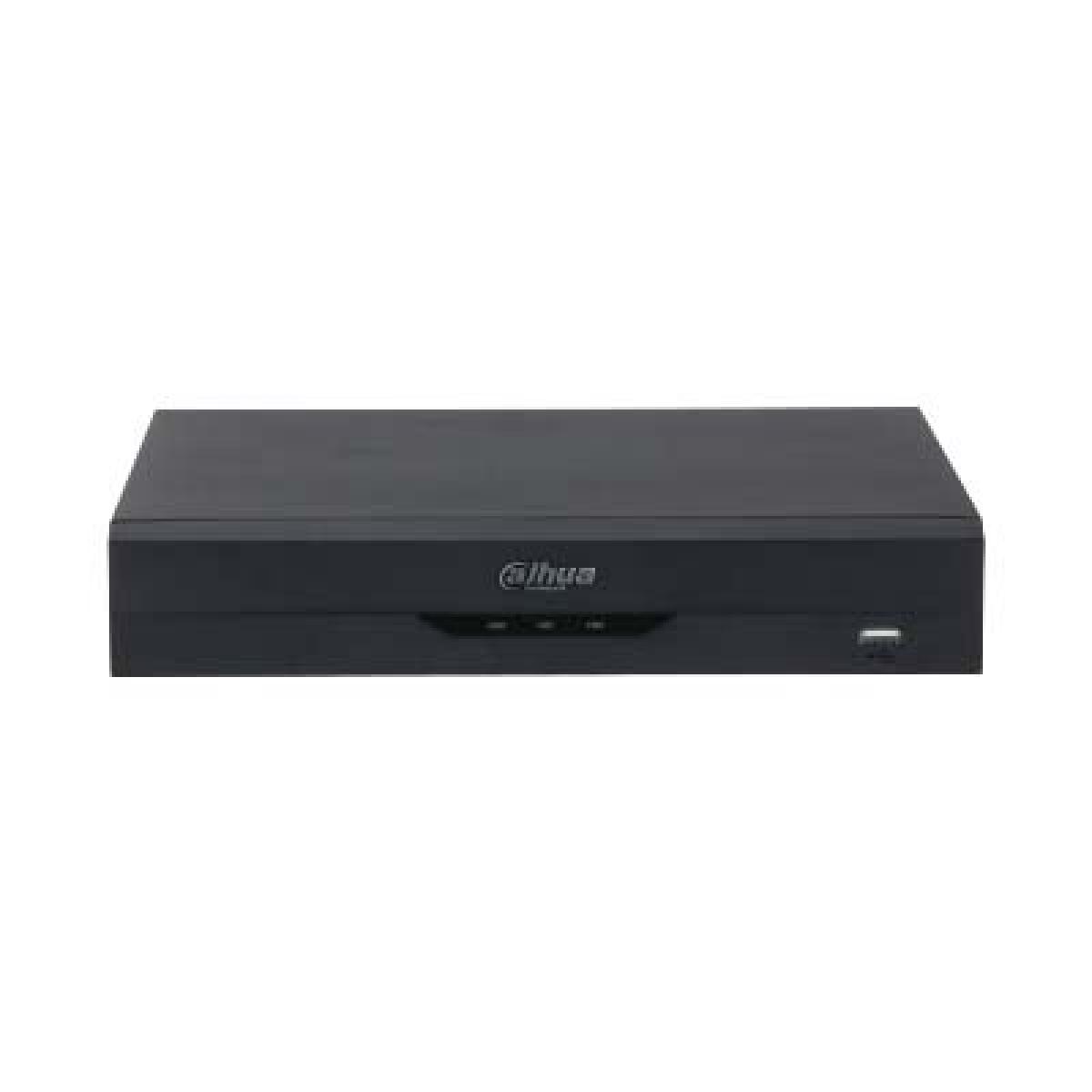

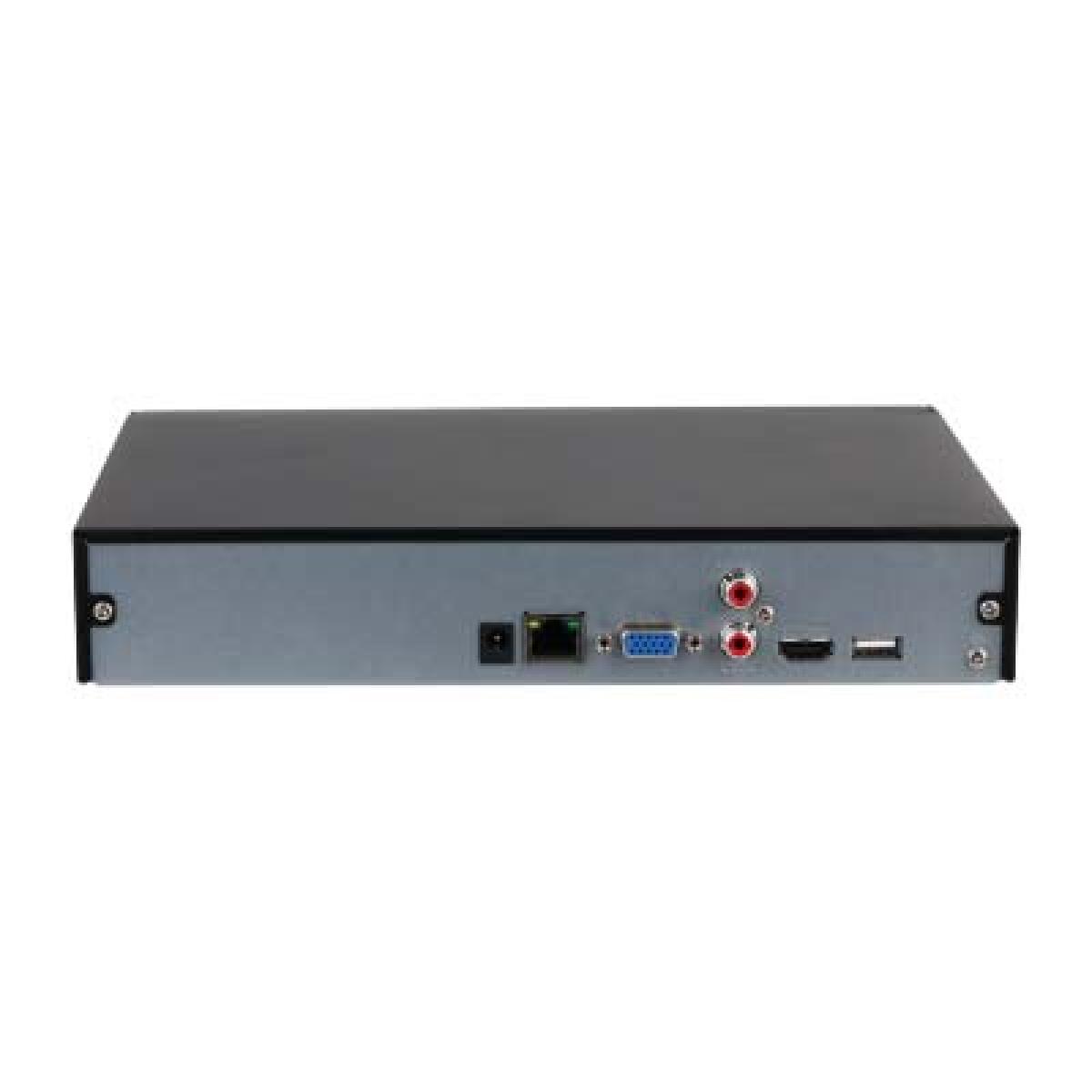

Dahua DHI-NVR1104HS-P-S3/H 4-Channel 4PoE Network Video Recorder
Compact 1U network video recorder with 4 channels and 4 built-in PoE ports, Smart H.265+ / H.264+ compression, one SATA bay (up to 8TB), HDMI and VGA output.
Product Specifications
| Recorder System | |
|---|---|
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| Recorder Video and Audio | |
| IP Camera Input | 4 channels |
| Recording | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Resolution | 8MP |
| Record Rate | General; motion detection; intelligent; alarm |
| Recorder Display | |
| Interface | 1 HDMI ; 1 VGA |
| Recorder Network | |
| Ethernet port | x1 10/100 Mbps |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;DNS; P2P |
| Recorder Storage | |
| HDD | 1 SLOT |
| Warranty | |
| Warranty | 1 Year |
| Recorder Network | |
| PoE Ports | 4 (10/100 Mbps) |
| PoE Power Budget | 36W total |
| Recorder Video and Audio | |
| Maximum Decoding Capability | 1-ch@8MP (30fps), 4-ch@1080p (30fps) |
| Recorder Storage | |
| Storage Capacity | 1 SATA port, up to 8TB |
| Auxiliary Interface | |
| USB | 2 (1 front USB 2.0, 1 rear USB 2.0) |
| Power | |
| Power Supply | DC 48V, 1.25A |
| Construction | |
| Dimensions | 260mm × 225mm × 47.6mm |
| Net Weight | 0.84 kg |
| Environment | |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%~93% |
Product Datasheet
The datasheet for this product is available on request. Please contact our team and we will send it to you.
