RG-RAP72PRO
$207.00
Highlight Features
- Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
- Superior streaming with Wi-Fi 7’s exclusive MLO feature
- Compact design and easy installation
- Enhanced data transmission with 4K-QAM for faster speeds
- Ideal for integrating with enterprise switches to create a robust office network
214 in stock
Product Specifications
| Product Type | |
|---|---|
| Product Type | Ceiling AP |
| Wi-Fi Radio | |
| Radio design | Dual-radio 5 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 3 x 3, MU-MIMO |
| Maximum wireless data rate | 5011 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 4323 Mbps |
| 2.4 GHz wireless data rate | 688 Mbps |
| Antenna | |
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas |
| Dimensions and Weight | |
| Product dimensions (W x D x H) | 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) (excluding the mounting bracket) |
| Color | White |
| Weight | ≤ 0.75 kg (1.65 lbs.) (without packaging materials) |
| Port Specifications | |

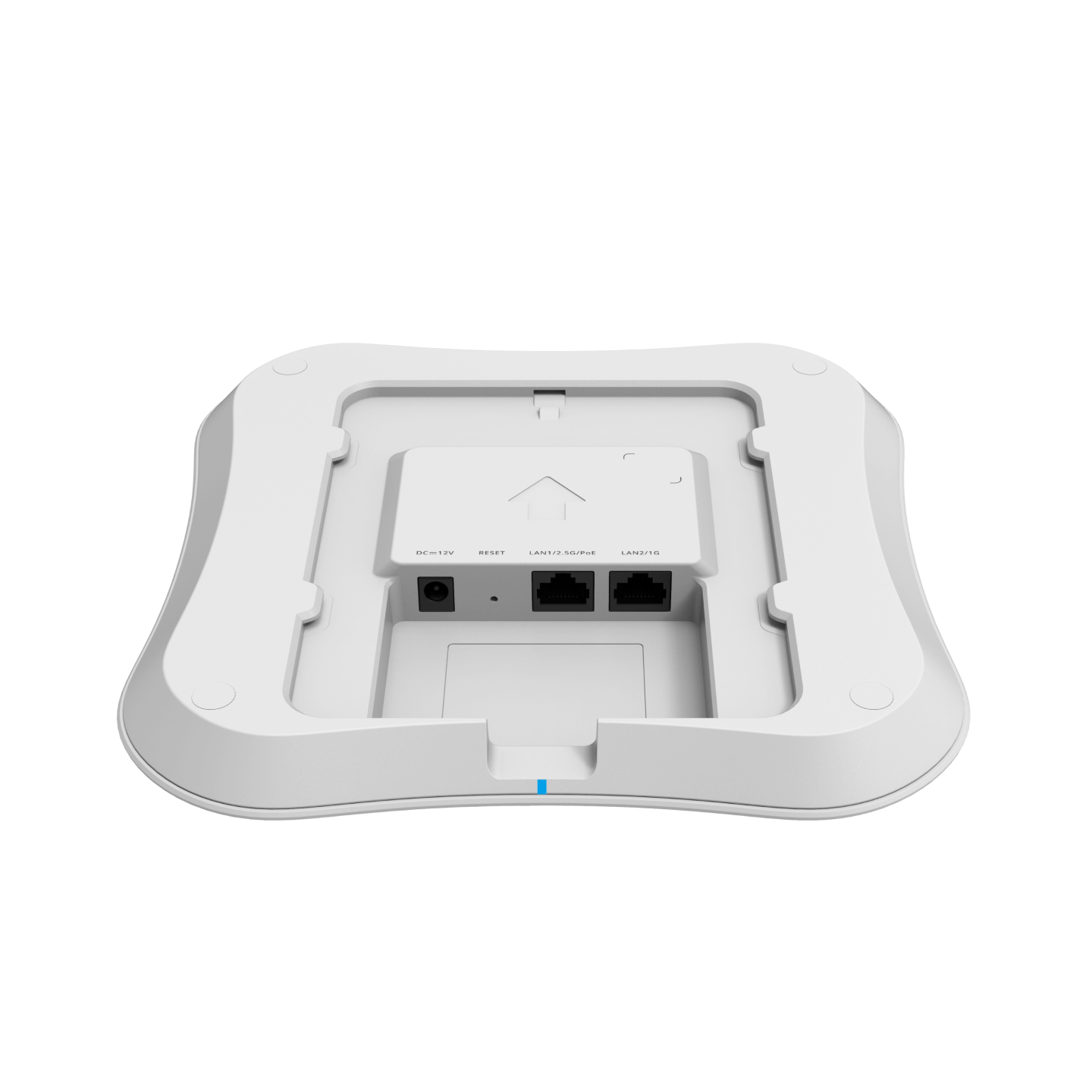

| Number of 10/100/1000BASE-T ports | 1 |
| Number of 10/100/1000/2500BASE-T ports | 1 |
| Power Supply and Consumption | |
| Power supply | ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply | Yes, one DC power connector (12 V, 2.5 A) |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Length: 10 mm (0.39 in.) |
| PoE budget | No |
| Maximum power consumption | 30 W |
| Environment and Reliability | |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting options | Ceiling/Wall |
| IP rating | IP41 |
| WLAN | |
| Maximum number of associated wireless clients | 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled) |
| Co-channel roaming | Yes |
| Maximum number of devices that can be managed | 300 |
| IP Service | |
| IPv6 | Yes |
Product Datasheet
Source: official manufacturer datasheet.
