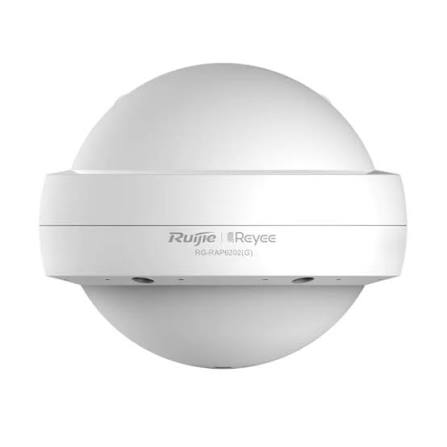

RG-RAP6262
$10.00
RG-RAP6262 — Key Features
- Wi-Fi 6 AX3000: Up to 2.97 Gbps combined wireless speed.
- Omni-Directional Coverage: Built-in high-gain antennas provide wide-area outdoor coverage.
- Optical Connectivity: Includes 1 Gigabit Ethernet + 1 Gigabit SFP port for long-distance deployment.
- Rugged Outdoor Design: IP68-rated protection against dust, water and harsh weather conditions.
- Reyee Mesh & Cloud Management: Easy network expansion, remote monitoring and centralized management.
100 in stock
Product Specifications
| Product Type | |
|---|---|
| Product Type | Outdoor AP |
| Wi-Fi Radio | |
| Radio design | Dual-radio 4 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate | 2974 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
| Antenna | |
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas |
| Dimensions and Weight | |
| Product dimensions (diameter x height) | Ø230 mm x 195 mm (Ø9.06 in. x 7.68 in.) (spherical device, excluding the mounting bracket) |
| Color | White |
| Weight | ≤ 1.4 kg (3.09 lbs.) (without packaging materials) |
| Port Specifications | |
| Number of 10/100/1000BASE-T ports | 1 |
| Number of 1GE SFP ports | 1 |
| Power Supply and Consumption | |
| Power supply | ● DC power adapter ● PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply | Yes, one DC power connector (12 V, 2 A) |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.) |
| PoE budget | No |
| Maximum power consumption | 24 W |
| Environment and Reliability | |
| Operating temperature | –30°C to +65°C (–22°F to +149°F) |
| Mounting options | Wall/Pole |
| IP rating | IP68 |
| WLAN | |
| Maximum number of associated wireless clients | 64 (2.4 GHz) 512 (5 GHz) 512 (2.4 GHz and 5 GHz enabled) |
| Co-channel roaming | Yes |
| Maximum number of devices that can be managed | 300 |
| IP Service | |
| IPv6 | Yes |
Product Datasheet
Source: official manufacturer datasheet.
