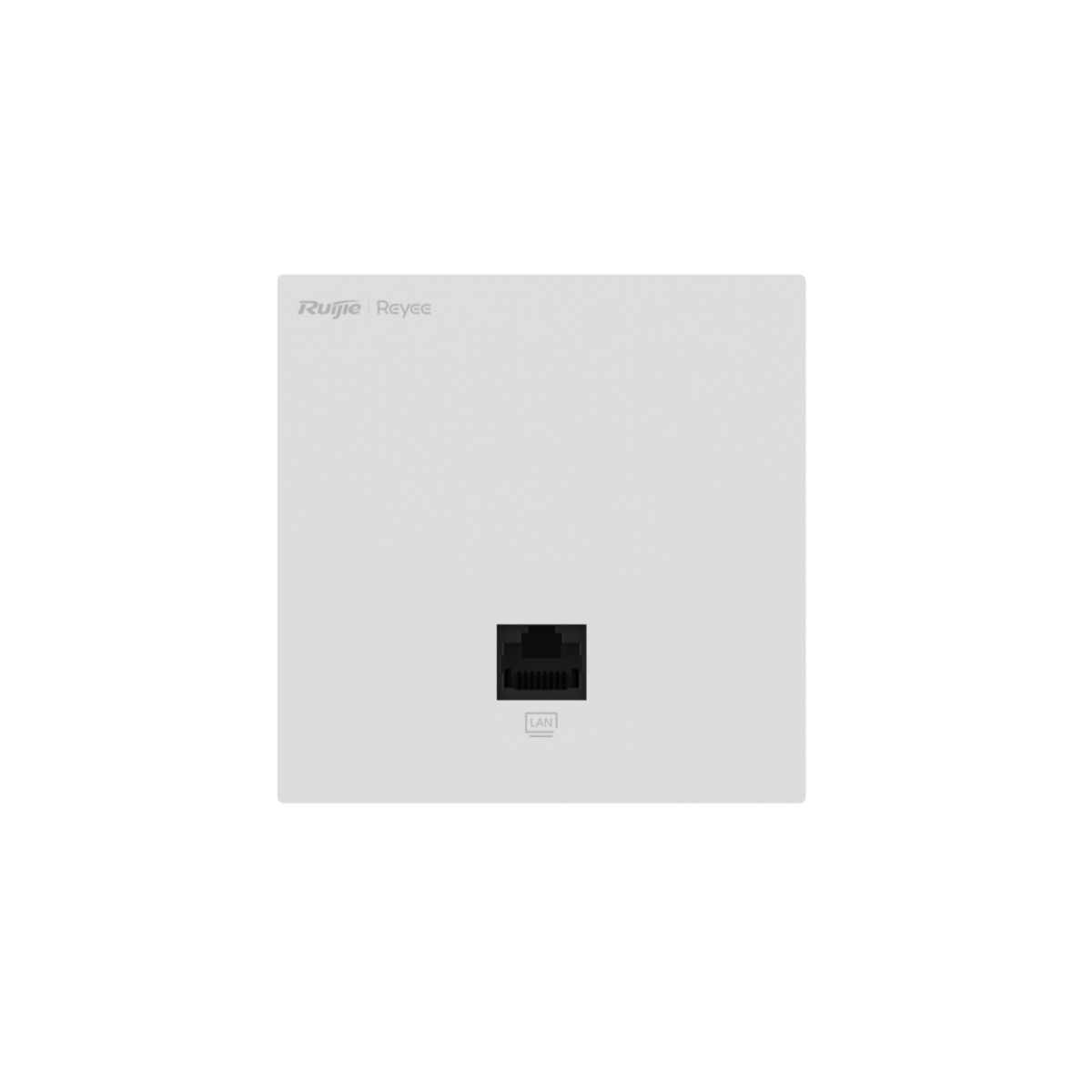

RG-RAP1261
$10.00
RG-RAP1261 — Key Features
- Wi-Fi 6 AX3000: Up to 2974 Mbps combined wireless speed.
- Dual-Band 2×2 MU-MIMO: 2.4 GHz + 5 GHz for efficient multi-device connectivity.
- Ultra-Thin Design: Only 8.5 mm thick with an 86 mm standard wall-plate design.
- Gigabit Ports: 2 × Gigabit Ethernet ports with 802.3af PoE/PoE+ support.
- Reyee Mesh & Cloud Management: Supports seamless roaming, mesh networking and remote management.
100 in stock
Product Specifications
| Product Type | |
|---|---|
| Product Type | Wall AP |
| Wi-Fi Radio | |
| Radio design | Dual-radio 4 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate | 2974 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
| Antenna | |
| Antenna | Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
| Dimensions and Weight | |
| Product dimensions (W x D x H) | 86 mm x 42.4 mm x 86 mm (3.39 in. x 1.67 in. x 3.39 in.) |
| Color | White |
| Weight | ≤ 0.16 kg (0.35 lbs.) (without packaging materials) |
| Port Specifications | |
| Number of 10/100/1000BASE-T ports | 2 |
| Power Supply and Consumption | |
| Power supply | PoE/PoE+ |
| Local power supply | No |
| Dimensions of the DC connector | No |
| PoE budget | No |
| Maximum power consumption | 10.2 W |
| Environment and Reliability | |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting options | Junction box |
| IP rating | No |
| WLAN | |
| Maximum number of associated wireless clients | 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled) |
| Co-channel roaming | Yes |
| Maximum number of devices that can be managed | 300 |
| IP Service | |
| IPv6 | Yes |
Product Datasheet
Source: official manufacturer datasheet.
