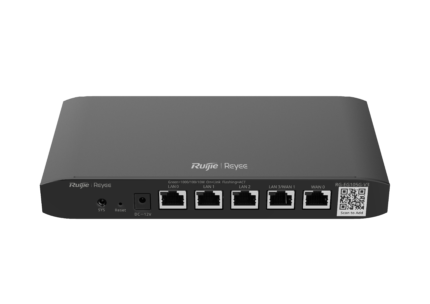

RG-EG105G-P-V3

$140.00

Highlight Features
  • Unified Features with Upgraded Flash Storage
  • User-friendly configuration and easy to use
  • High reliability and load balancing through WAN ports
  • Easy to block unwanted applications with automatically updating library
  • Customized portal page, what you see is what you get (WYSIWYG)
  • Secure access to internal devices remotely

51 in stock

SKU: RG-EG105G-P-V3 Categories: ,
Product Specifications
Port Specifications
Number of 10/100/1000BASE-T ports 5
Number of fixed LAN ports 3
Number of fixed WAN ports 1
System Specifications
CPU Dual-core processor, 880 MHz clock frequency per core
Flash memory 32 MB
RAM 128 MB
Power Supply and Consumption
PoE budget 54 W
Dimensions and Weight
Product dimensions (W x D x H) 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.)
Weight 0.406 kg (0.9 lbs)
Environment and Reliability
Mounting options Desk
Operating temperature 0°C to 40°C (32°F to 104°F)
System Performance Capacity
Recommended number of concurrent clients 100
Throughput 1000 Mbps (Turbo Mode)
600 Mbps (Normal Mode)
Product Datasheet

Download datasheet (PDF)

Source: official manufacturer datasheet.
