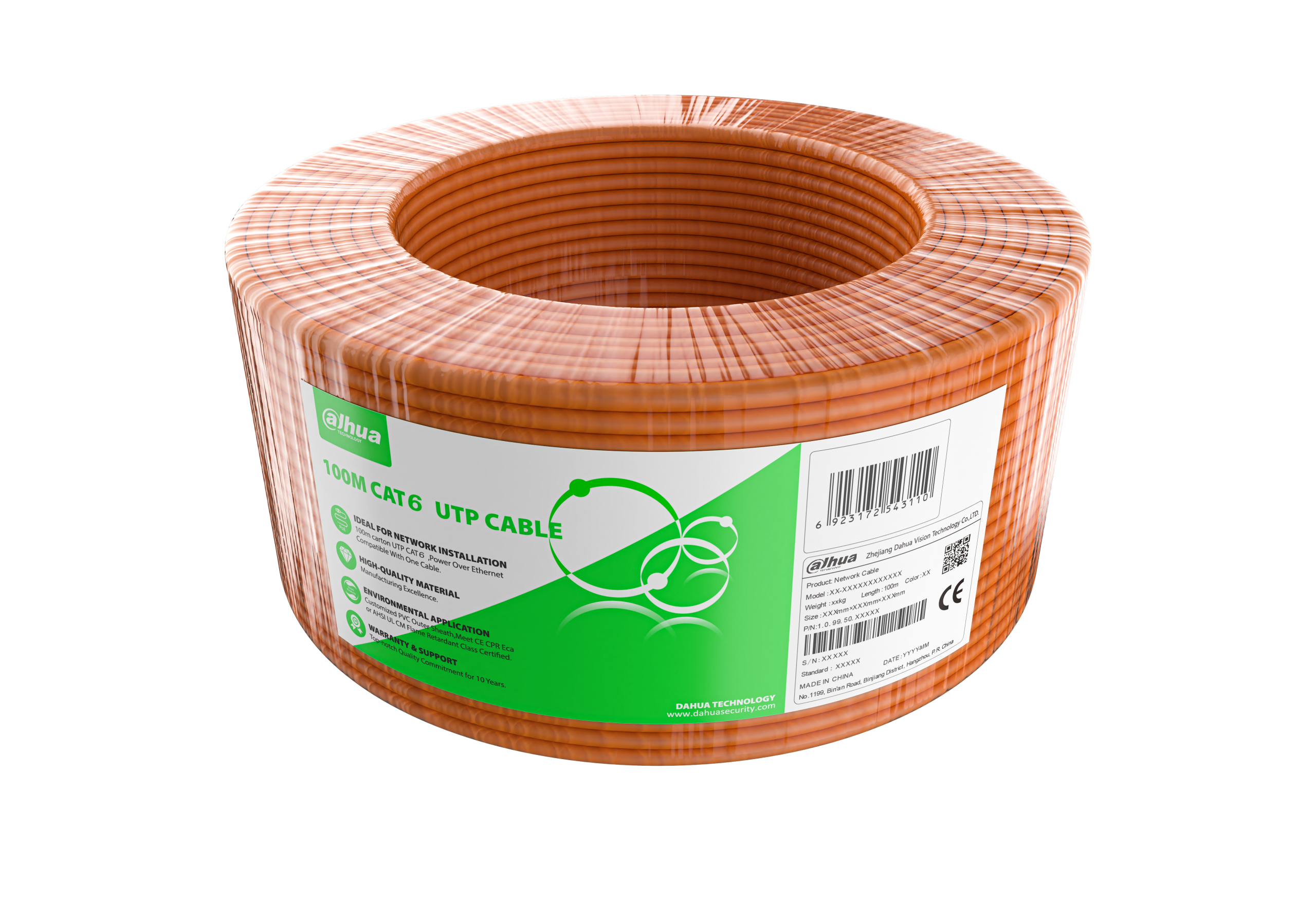

Dahua PFM922I-6UN-C-100 100m Orange UTP CAT6 Cable
100 m orange UTP CAT6 network cable with a flame-retardant PVC jacket. Supports PoE and carries a 10-year warranty.
Product Specifications
| Conductor | |
|---|---|
| Material | CCA (copper content 22%–31%) |
| Diameter | 0.57 mm ± 0.01 mm (0.0224" ± 0.0004") |
| Insulation | |
| Material | HDPE |
| Thickness | ≥ 0.21 mm (0.0083") |
| Diameter | 1.02 mm ± 0.06 mm (0.04" ± 0.0024") |
| Color | 8 cores (blue, white/blue; orange, white/orange; green, white/green; brown, white/brown) |
| Rip Cord | |
| Material | Polyester |
| Specification | 500D |
| Separator | |
| Material | PE |
| Specification | Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157") |
| Sheath | |
| Material | PVC |
| Min. Average Thickness | ≥ 0.5 mm (0.0197") |
| Diameter | 6.5 mm ± 0.30 mm (0.26" ± 0.0118") |
| Color | Orange |
| Electrical | |
| Max. DC Resistance of a Single Conductor | ≤ 11.5 Ω@100 m (328.08 ft) |
| Environmental | |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature & Humidity | –10 °C to +40 °C (+14 °F to +104 °F), < 60% (RH) |
| Packaging | |
| Cable Length | 100.0 m (328.08 ft) |
| Packaging Dimensions | 280 mm × 280 mm × 110 mm (11.02" × 11.02" × 4.33") (L × W × H) |
| Net Weight | 3.1 kg ± 0.3 kg (6.83 lb ± 0.66 lb) |
| Gross Weight | 3.5 kg ± 0.3 kg (7.72 lb ± 0.66 lb) |
| Packaging Method | 100.0 m (328.08 ft) a carton, one carton with 5 inner cartons |
| Transport Package Dimensions | 567 mm × 297 mm × 308 mm (22.32" × 11.69" × 12.13") (L × W × H) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2019 |
| Certification | |
| Certification | CPR Eca |
| Flame-retardant Standard | |
| Compliance Standard | EN 50575 Eca |
Product Datasheet
Source: official manufacturer datasheet.
