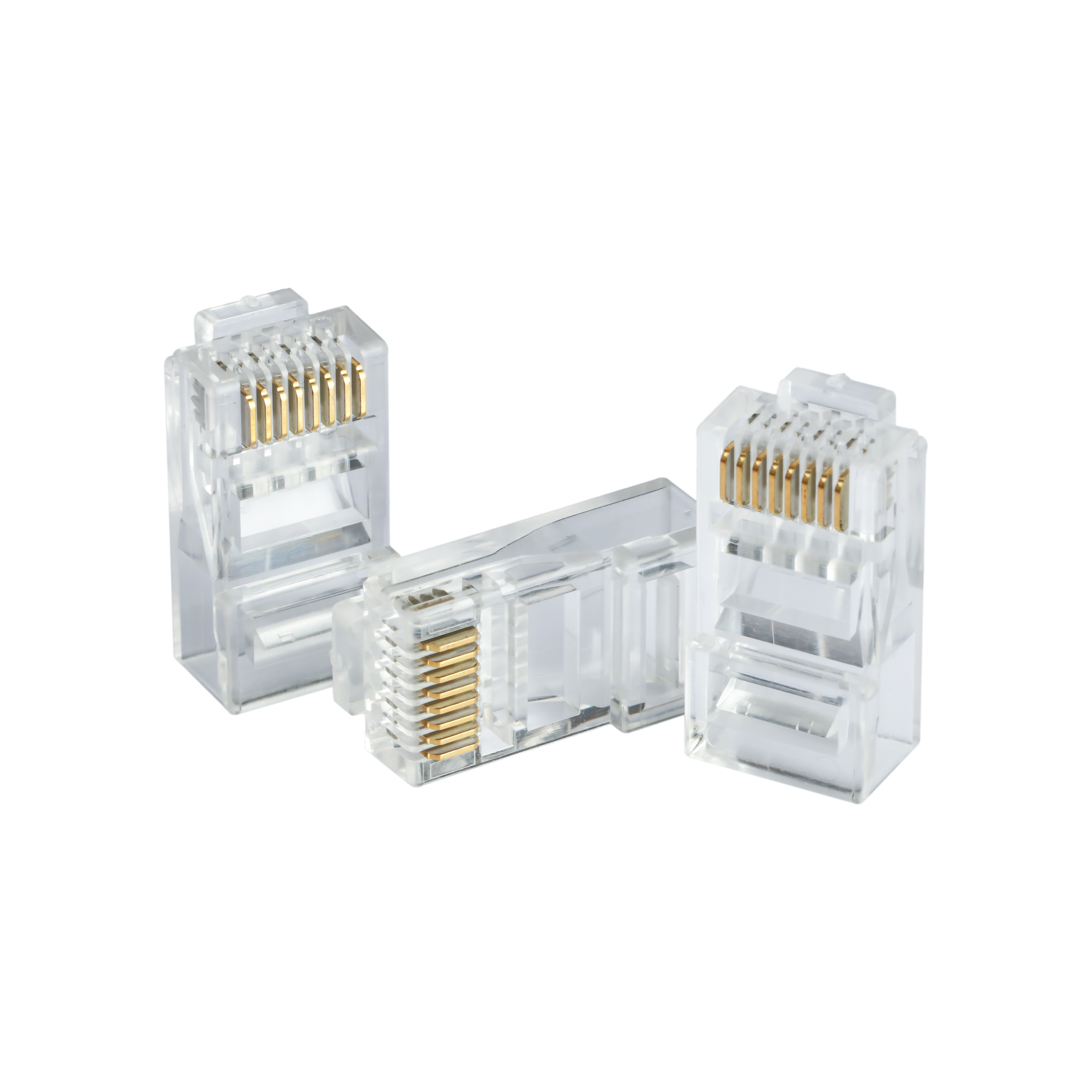

Dahua PFM976-631 CAT6 RJ45 Connector
CAT6 RJ45 connector with gold plating, rated for around 750 insertions and withdrawals.
Product Specifications
| Technical Specification | |
|---|---|
| Model | DH-PFM976-631 |
| Material | PC + brass |
| Gold Plating Thickness | 15u inch |
| Flammability Rating | UL94V-2 |
| Voltage | 150V AC MAX |
| Rated Current | 1.5AMPS@25℃ |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | 1000MΩ Min. @100V DC |
| Withstand Voltage | 1000V AC RMS/1500V DC @ 0.5mA 50Hz or 60Hz 1Minute |
| Strength | 50N for 60s±5s |
| Service life | 750 insertions |
| Operating Temperature | -25℃ to +55℃(-13℉ to +131℉) |
| Storage Temperature | -10℃ to +40℃(14℉ to +104℉) |
| Environment Humidity | <80%RH |
| Storage Time | 12 months |
| Cable Type | Single strand |
| Wire Diameter | 24 to 26 AWG |
| Cable Insulation Diameter | 0.89 to 0.99mm(0.035" to 0.040") |
| Cable Sheath Maximum Diameter | 5.7mm(0.022") |

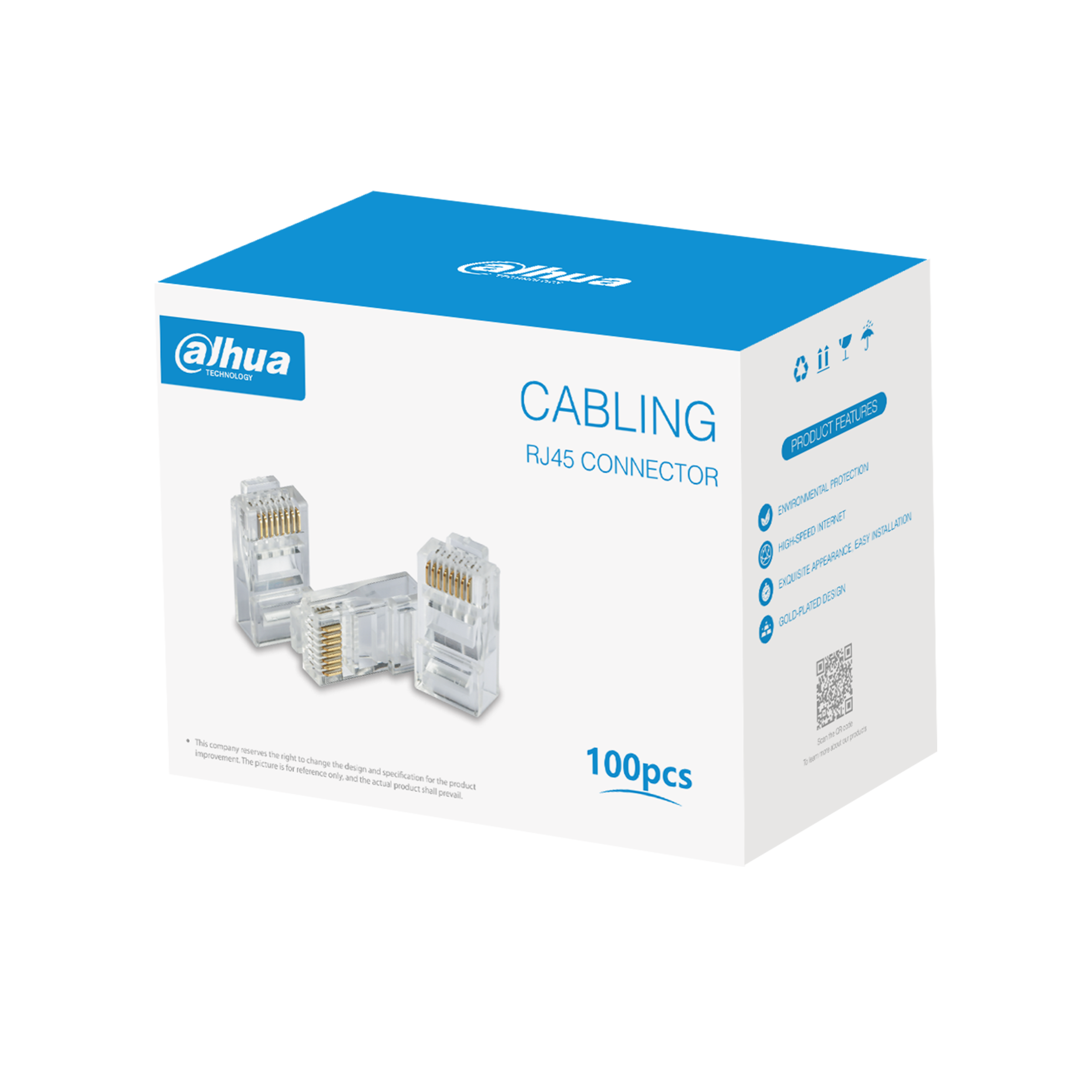

| Packaging Method | 1pc=1box, 100pcs RJ45 connectors/box |
Product Datasheet
Source: official manufacturer datasheet.
