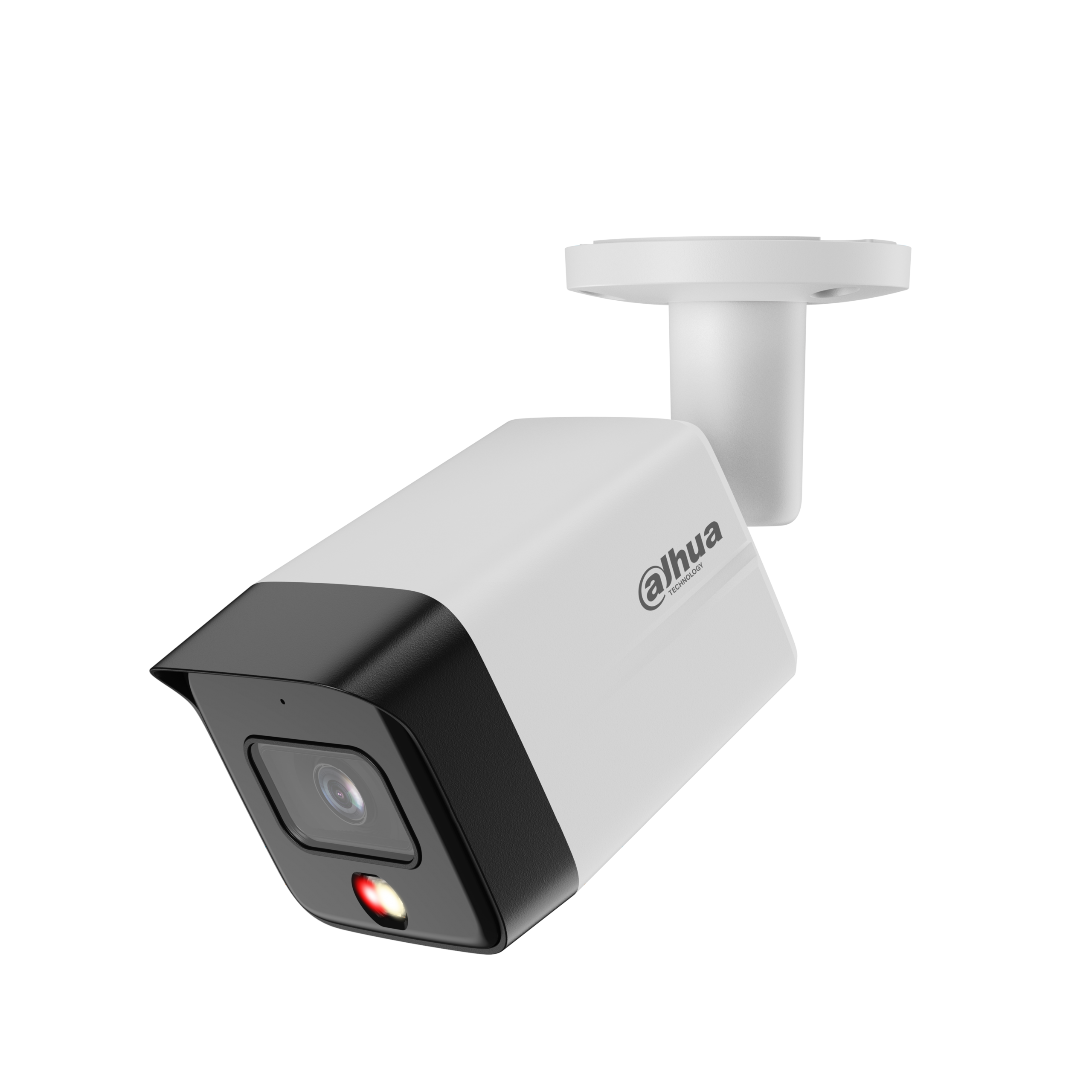

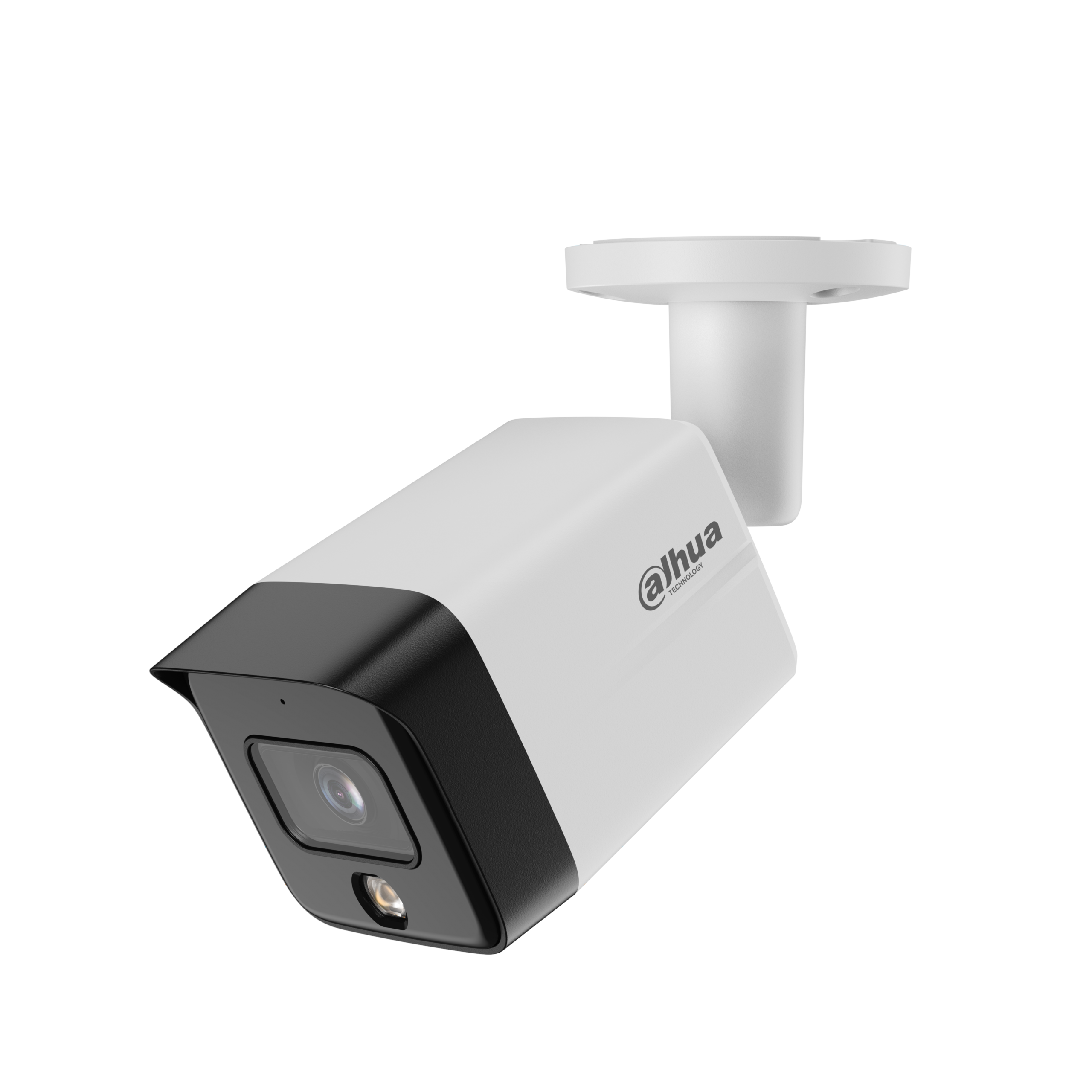

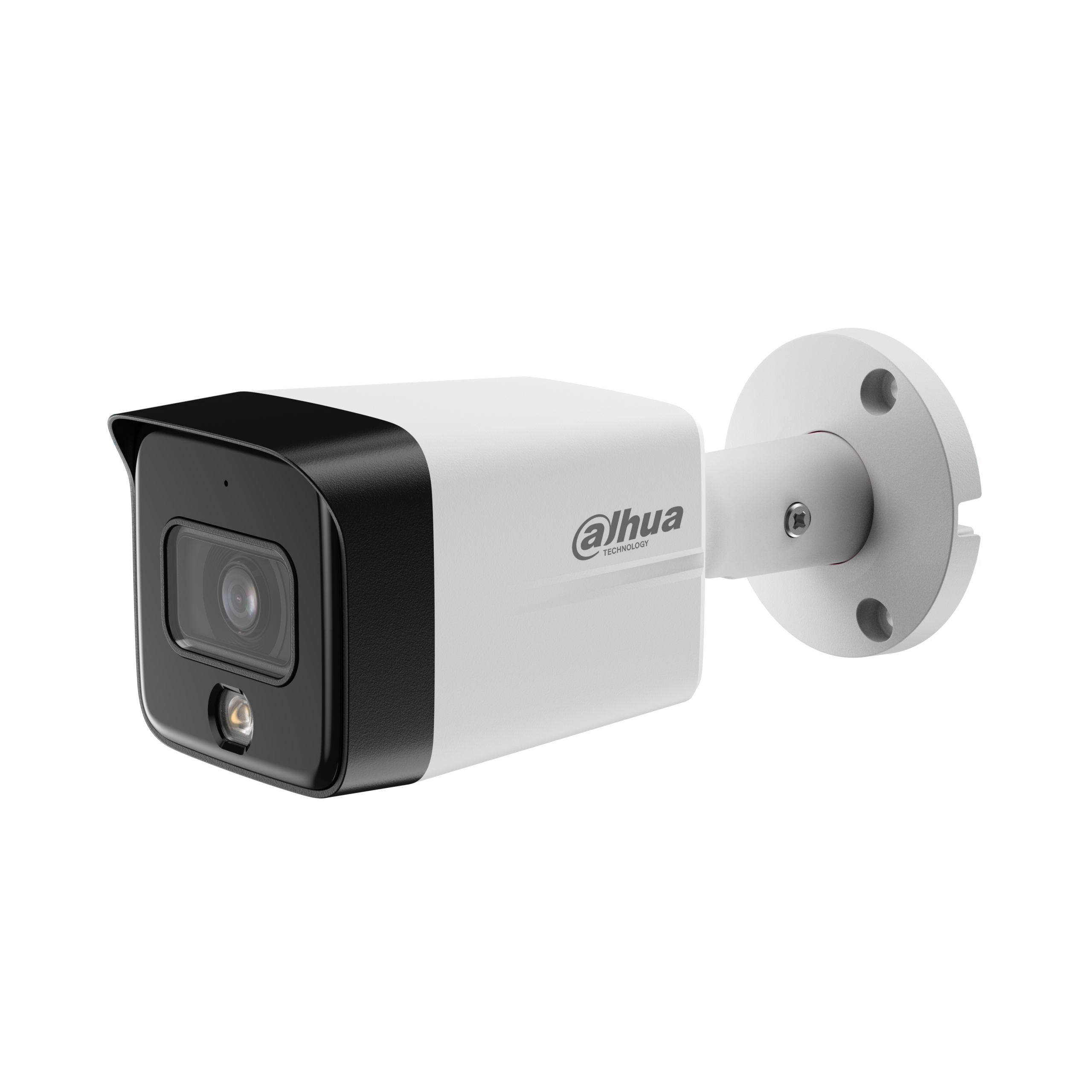

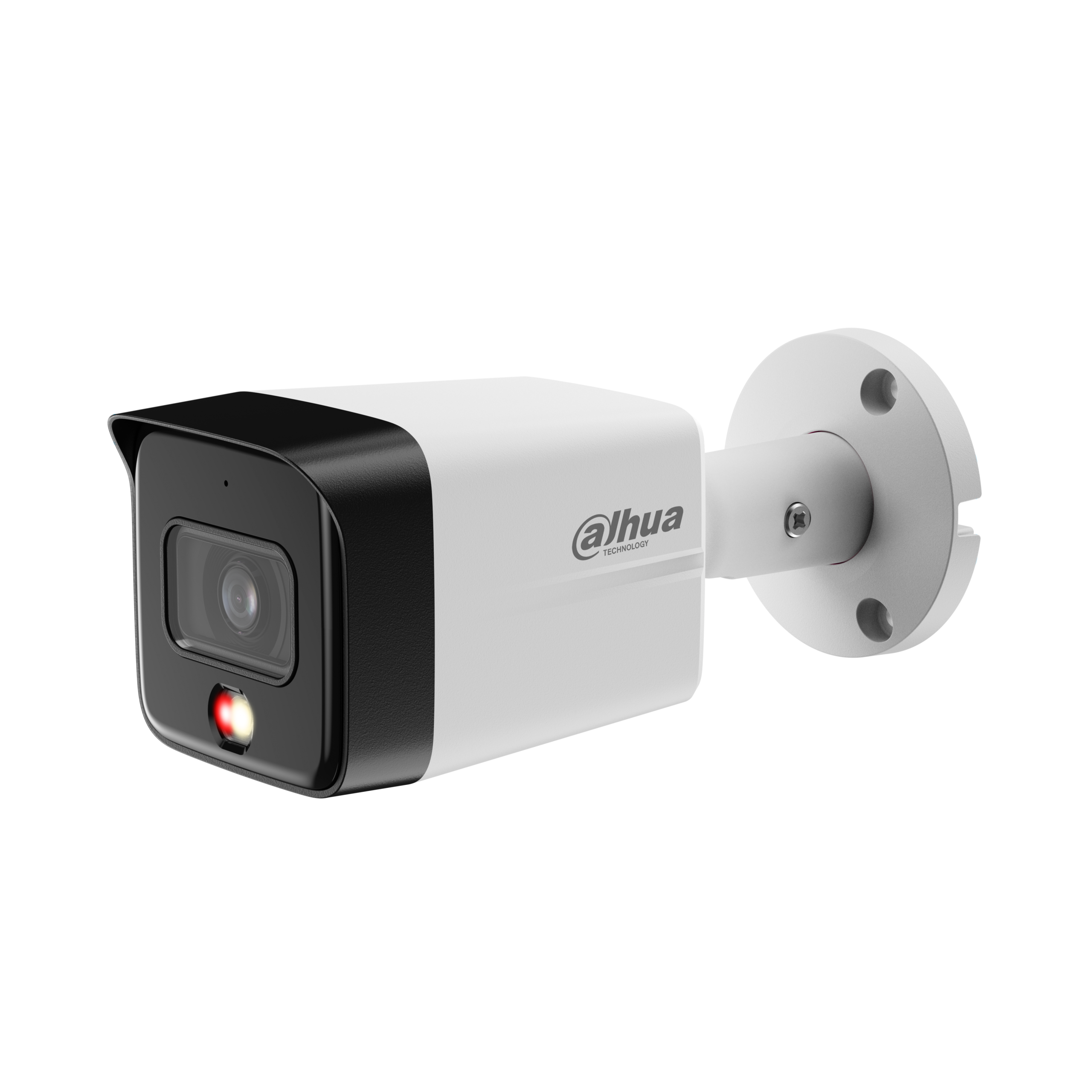

Dahua IPC-HFW1839TC-A-IL 8MP Dual Light Bullet Network Camera
8MP bullet camera with Smart Dual Light (IR plus LED), AI human detection and a built-in microphone. Entry-level series, IP67-rated.
Product Specifications
| Camera | |
|---|---|
| Image Sensor {v.name}--> |
1/2.7" CMOS |
| Max. Resolution {v.name}--> |
3840 (H) × 2160 (V) |
| ROM {v.name}--> |
128 MB |
| RAM {v.name}--> |
256 MB |
| Scanning System {v.name}--> |
Progressive |
| Electronic Shutter Speed {v.name}--> |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination {v.name}--> |
0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio {v.name}--> |
＞56 dB |
| Illumination Distance {v.name}--> |
Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control {v.name}--> |
Auto;Manual |
| Illuminator Number {v.name}--> |
1 (Multi-core (IR + warm) light) |
| Angle Adjustment {v.name}--> |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type {v.name}--> |
Fixed-focal |
| Lens Mount {v.name}--> |
M12 |
| Focal Length {v.name}--> |
2.8 mm; 3.6 mm |
| Max. Aperture {v.name}--> |
F1.6 |
| Field of View {v.name}--> |
2.8 mm: H: 110°; V: 58°; D: 132° 3.6 mm: H: 86°; V: 49°; D: 100° |
| Iris Control {v.name}--> |
Fixed |
| Close Focus Distance {v.name}--> |
2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 1.9 m (6.23 ft) |
| DORI Distance {v.name}--> |
Lens {v2}--> |
| 2.8 mm {v2}--> |
84.8 m ( 278.22 ft) {v2}--> |
| 3.6 mm {v2}--> |
98.7 m ( 323.82 ft) {v2}--> |
| Intelligence | |
| Human Detection {v.name}--> |
Support the classification and accurate detection of human |
| Smart Search {v.name}--> |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression {v.name}--> |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec {v.name}--> |
Smart H.265+; Smart H.264+ |
| Video Frame Rate {v.name}--> |
Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability {v.name}--> |
2 streams |
| Resolution {v.name}--> |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control {v.name}--> |
CBR/VBR |
| Video Bit Rate {v.name}--> |
H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night {v.name}--> |
Auto(ICR)/Color/B/W |
| BLC {v.name}--> |
Yes |
| HLC {v.name}--> |
Yes |
| WDR {v.name}--> |
DWDR |
| White Balance {v.name}--> |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control {v.name}--> |
Auto/Manual |
| Noise Reduction {v.name}--> |
3D NR |
| Motion Detection {v.name}--> |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) {v.name}--> |
Yes (4 areas) |
| Smart Illumination {v.name}--> |
Yes |
| Image Rotation {v.name}--> |
0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
| Mirror {v.name}--> |
Yes |
| Privacy Masking {v.name}--> |
4 areas |
| Audio | |
| Built-in MIC {v.name}--> |
Yes, built-in Mic |
| Audio Compression {v.name}--> |
G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event {v.name}--> |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
| Network | |
| Network Port {v.name}--> |
RJ-45 (10/100 Base-T) |
| SDK and API {v.name}--> |
Yes |
| Network Protocol {v.name}--> |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability {v.name}--> |
ONVIF (Profile S & Profile T); CGI |
| User/Host {v.name}--> |
6 (Total bandwidth: 48 M) |
| Storage {v.name}--> |
FTP |
| Browser {v.name}--> |
IE; Chrome; Firefox |
| Management Software {v.name}--> |
Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client {v.name}--> |
iOS;Android |
| Cyber Security {v.name}--> |
Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
| Certification | |
| Certifications {v.name}--> |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply {v.name}--> |
12 VDC/PoE (802.3af) |
| Power Consumption {v.name}--> |
Basic: 2.5 W (12 VDC), 3.5 W (PoE); Max.: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
| Environment | |
| Operating Temperature {v.name}--> |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity {v.name}--> |
≤95%(RH), non-condensing |
| Storage Temperature {v.name}--> |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity {v.name}--> |
≤95%(RH), non-condensing |
| Protection {v.name}--> |
IP67 |
| Structure | |
| Casing Material {v.name}--> |
Metal |
| Product Dimensions {v.name}--> |
173.3 mm × 70.0 mm × 70.0 mm (6.82" × 2.76" × 2.76") (L × W × H) |
| Net Weight {v.name}--> |
0.46 kg (1.01 lb) |
| Gross Weight {v.name}--> |
0.57 kg (1.26 lb) |
Product Datasheet
Source: official manufacturer datasheet.
