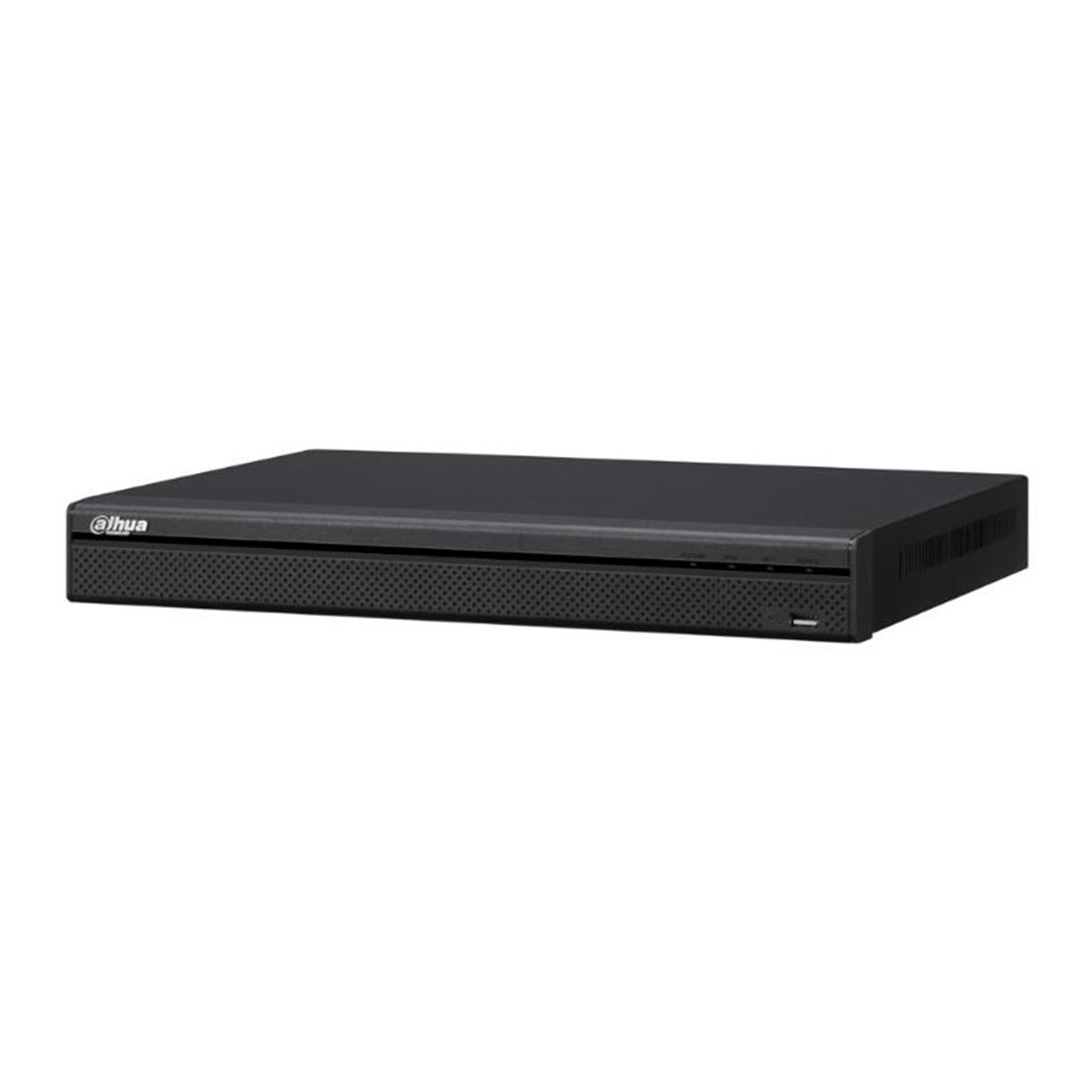

Dahua DHI-NVR2208-8P-4KS2 8-Channel 8-PoE 4K H.265 Lite Network Video Recorder
1U 8-channel network video recorder with 8 built-in PoE ports, H.265/H.264 recording, 4K HDMI output and two SATA bays.
Product Specifications
| System | |
|---|---|
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded Linux |
| Audio and Video | |
| IP Camera Input | 8 channels |
| Max. Incoming Bandwidth | 80 Mbps |
| Two-way Talk | 1 input, 1 output (RCA) |
| Display | |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| VGA Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Multi-screen Display | 1/4/8/9 |
| Recording | |
| Compression | H.265/H.264 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1 etc. |
| Bit Rate | 16 Kbps ~ 20 Mbps per channel |
| Record Mode | Manual, Schedule (Regular (Continuous), MD, Stop) |
| Video Detection | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Tampering |
| Network | |
| Network Port | 1 RJ-45 (10/100/1000 Mbps) |
| PoE | 8 ports (IEEE 802.3at/af) |
| Max. User Access | 128 users |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Smart Phone | iPhone, iPad, Android |
| Storage | |
| Internal HDD | 2 SATA III ports, up to 6 TB per HDD |
| USB | 2 ports (1 rear USB2.0, 1 front USB2.0) |
| Electrical | |
| Power Supply | DC 54V/2.22A |
| Power Consumption | NVR: <5.8 W (without HDD); PoE: max 25.5 W per port, 80 W in total |
| Environment | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106 kPa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Physical | |
| Construction | 1U |
| Dimensions (W × D × H) | 375 mm × 275 mm × 53 mm (14.8" × 10.8" × 2.1") |
| Net Weight | 1.6 kg (3.53 lb) (without HDD) |
| Gross Weight | 3.0 kg (6.61 lb) (without HDD) |
| Certifications | CE, FCC, UL |
Product Datasheet
Source: official manufacturer datasheet.
